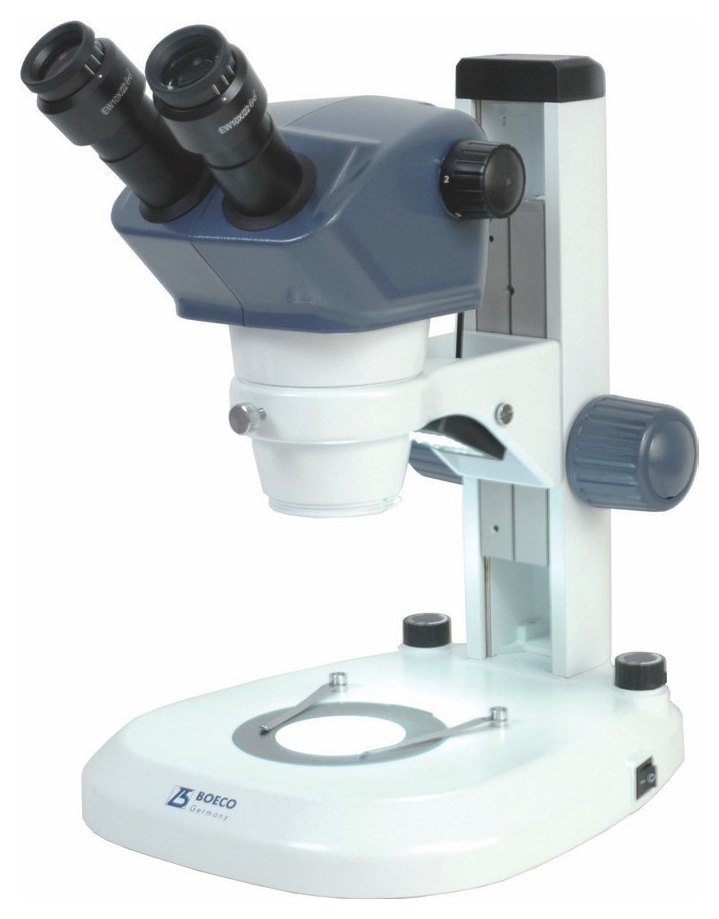

BOECO Zoom Stereo Microscope Model BST-606

Specification
Optical head:Binocular head inclined at 45° Interpupillary Distance 55 - 75 mm Eyepiece dioptric adjustment range ± 5D
Working distance:115 mm
Field of View:28,0 to 4.5 mm diam.
Eyepiece:EWF 10X/22 eyepieces with eyeshadow
Zoom Optics:0,8X to 5X , Zoom ratio 1:6,3
Illumination:2-way illumination switch allows upper and lower illumination
Transmitted (lower) LED light source
Incident (upper) LED light source
Stage Plate:100 mm ø frosted glass stage plate and black/white reversible stage plate
Base:Stable 300 x 225 mm base, fitted with anti-skid rubber feet Main Body 360° rotatable
Power: 100-240V, 50-60Hz
Dimensions: 400 x 340 x 670 cm, Grossweight 10,1 kg
Code Description Head Plug
BOE 6060.000 BST-606 Binocular EURO
BOE 6060.001 BST-606 Binocular US

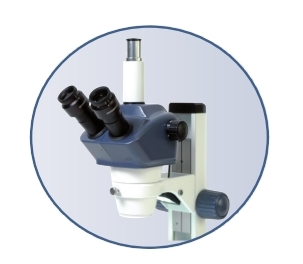

BOE 6060.300 BST-606/T Trinocular EURO
BOE 6060.301 BST-606/T Trinocular US

Optional

Code Description
BOE 3460.020 Wide Field Eyepiece WF 20x/12 w/ diopter adjustment
BOE 6060.002 Auxiliary Objective 2x, for BST-606
BOE 6060.005 Auxiliary Objective 0,5x, for BST-606
