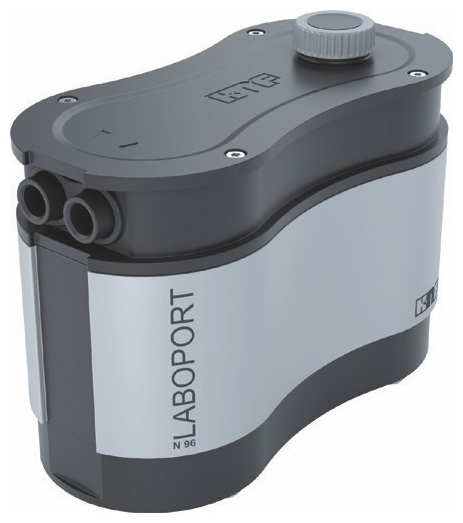

Mini Diaphragm Vacuum Pump N96

The N 96 combines a high flow rate with a compact design, saving valuable
space in the laboratory. Thanks to the manual rotational speed control, the
N 96 is quiet, very energy efficient, and can be optimally adjusted in
accordance with the application.
Potential applications include filtration, SPE, and liquid aspiration using a
vacuum.

  • 100 % oil-free transfer - thereby pure transferring evacuation and compression of gases
  • Extremely low footprint
  • Maintenance-free
  • Environmentally friendly
  • PTFE-coated diaphragm for use with aggressive/corrosive gases and vapors
Specification N96:
Flow rate: 7 l/min
Vacuum: 130 mbar abs.
Pressure: 2,5 bar
Connectors for tube: ID 4 mm
Permissible gas and ambient temp: +5...+40°C
Motor protection: IP 40
Weight: 1,3.kgs
Dimensions LxHxB: 156x119x75 mm
Code Description
KNF 322806/00000 KNF LABOPORT®N 96, 100-240 V, 50/60 Hz,
Diaphragm Vacuum Pump
Pump head: PPS, Diaphragm: PTFE-coated,
Valves: FKM

Options:

Code Description
KNF 132254/000000 Fine control valve (vacuum side)
KNF 058970 Fine control valve (pressure side)
