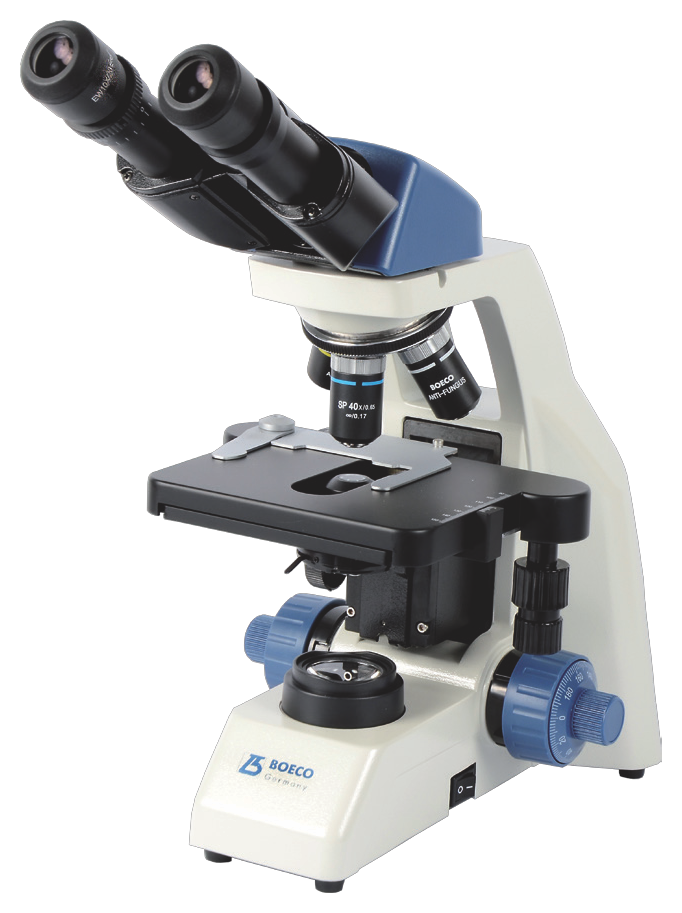

BOECO Binocular Microscope - BM-250

Siedentopf Viewing Head, 30° inclined, 360° rotatable, with Infinite corrected optical system. interpupillary Distance 47 - 78 mm, diopter adjustable (left side)
Backward quadruple revolving nosepiece

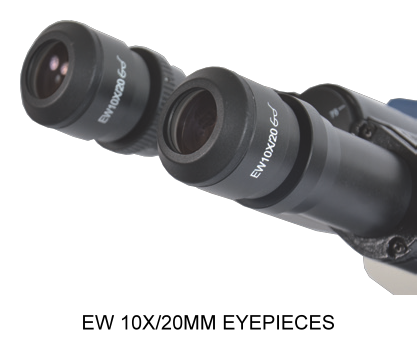

Pair Eyepiece WF 10X /20 mm Wide field

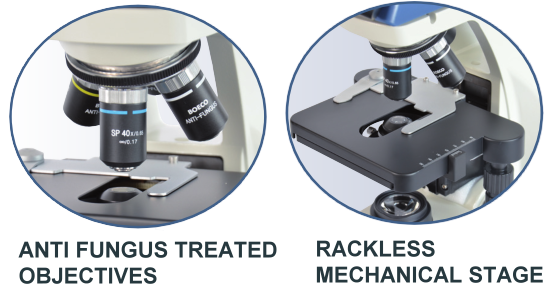

BOECO Anti Fungus Infinite Semi-plan Achromat, Objectives F=180 mm: 4x, 10x, 40x (S), 100x (S) (Oil)

Specification	BM-300/I/SP:
Optical Head:	Siedentopf Viewing Head, 30° inclined, 360° rotatable, with Infinite corrected optical system. interpupillary Distance 47 - 78 mm, diopter adjustable (left side)
Nosepiece:	Backward quadruple revolving nosepiece
Eyepiece:	Pair Eyepiece WF 10X /20 mm Wide field
Objectives:	BOECO Anti Fungus Infinite Semi-plan Achromat Objectives F=180 mm: 4x, 10x, 40x (S), 100x (S) (Oil)
Stage:	Rackless Double layer mechanical specimen stage. 150 x 139 mm, moving range 75 x 52 mm, Right hand stage handle
Focusing:	Low position, coaxial coarse and calibrated fine focus control, with graduation reading 2 microns per division. Total focusing range 25 mm, Safety stop unit.
Condenser:	Abbe Bright field condenser, N.A. 1,25, Integrated Iris diaphragm and filter tray. With rack & pinion height adjustment
Illumination:	S-LED, brightness adjustable.
Body /power:	Sturdy body with supportive rubber and inbuilt power supply, 100-240V, 50/60Hz
Supplied with:	Dust cover, green filter, immersion oil, instruction manual
Dimension:	208(W) x 266(D) x 370(H) mm
Weight:	Net weight 7,1 / 7,3 kgs
Packing:	tyrofoam shelve in a cardboard box

Objectives

Code	Description
BOE 3000.512	BOECO Infinite Semi-Plan Achromatic AF Obj. 4X
BOE 3000.514	BOECO Infinite Semi-Plan Achromatic AF Obj. 10X
BOE 3000.516	BOECO Infinite Semi-Plan Achromatic AF Obj. 40X (S)
BOE 3000.517	BOECO Infinite Semi-Plan Achromatic AF Obj. 100X (S) (Oil)
