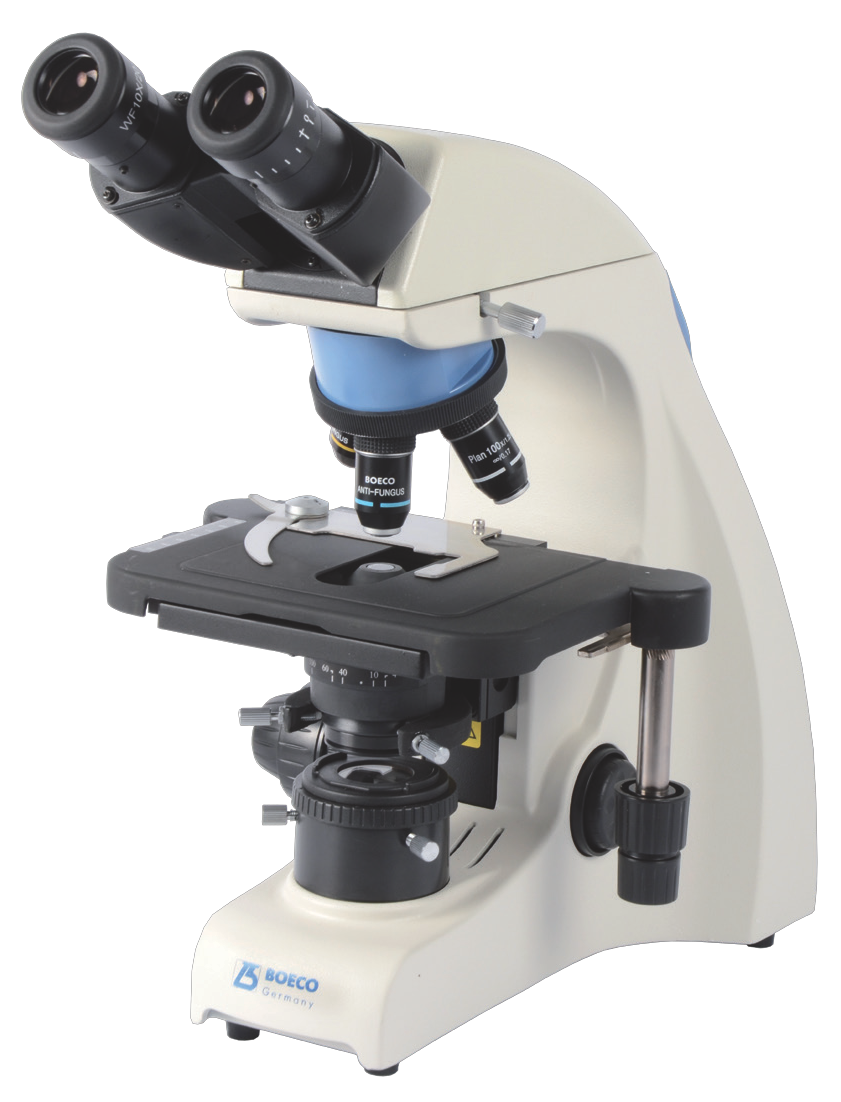

BOECO Binocular Microscope - BM-700
Our advanced biological Microscope for educational, teaching, life science and clinical applications. The Anti-Fungus treatment protects the optical system, objectives and eyepieces in high-humidity environments.
The new designed F=200 mm Infinite Plan achromatic objectives provide a fully corrected image for clear visual and digital results.
| Specification | BM-700: |
| Optical Head: | Siedentopf Binocular Head, 30° inclined, 360° rotatable, with high quality infinite optical system |
| Nosepiece: | Backward quadruple revolving nosepiece |
| Eyepiece: | Pair Eyepiece WF 10X /20 mm, diopter adjustable, with anti fungus treatment, Interpupillary Distance 47-75 mm |
| Objectives: | BOECO Anti Fungus Infinite Plan Achromat Objectives 4x, 10x, 40x (S), 100x (S) (Oil) |
| Stage: | Double layer mechanical specimen stage. 216 x 150 mm Travel area 78 x 54 mm, Right hand stage handle |
| Focusing: | Low position, coaxial coarse and calibrated fine focus control, with graduation reading 2 microns per division. Total focusing range 24 mm, Safety autofocus stop unit. |
| Condenser: | Sliding-in centerable Bright field condenser, n.A. 1,25, Integrated Iris diaphragm and filter tray. |
| Illumination: | 3W LED lamp, Koehler illumination, brightness adjustable. |
| Body /power: | Sturdy body with supportive rubber and inbuilt power supply 100 - 240V, 50/60 Hz |
| Supplied with: | Dust cover, green filter, immersion oil and instruction manual |
| Dimension: | 204 x 376 x 406 mm |
| Weight: | Net weight 7,0 / 7,2 kgs |
| Packing: | styrofoam shelve in a cardboard box |
| Code | Description | Head | plug |
| BOE 7000.570 | BM-700/I/PL | Binocular | Euro |
| BOE 7000.571 | BM-700/I/PL | Binocular | US |
| BOE 7000.580 | BM-700/T/I/PL | Trinocular | Euro |
| BOE 7000.581 | BM-700/T/I/PL | Trinocular | US |

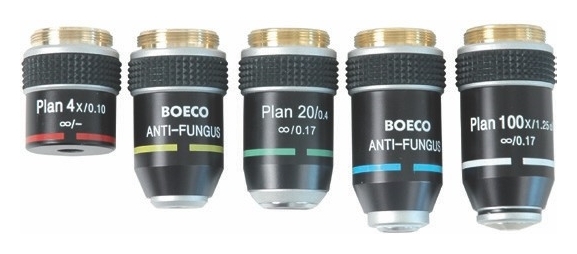

Objectives for BM-700
| Code | Description |
| BOE 7000.552 | BOECO Infinity Plan Achromatic AF Obj. 4X |
| BOE 7000.553 | BOECO Infinity Plan Achromatic AF Obj. 10X |
| BOE 7000.559 | BOECO Infinity Plan Achromatic AF Obj. 20X |
| BOE 7000.554 | BOECO Infinity Plan Achromatic AF Obj. 40X (S) |
| BOE 7000.555 | BOECO Infinity Plan Achromatic AF Obj. 100X (S) (Oil) |
