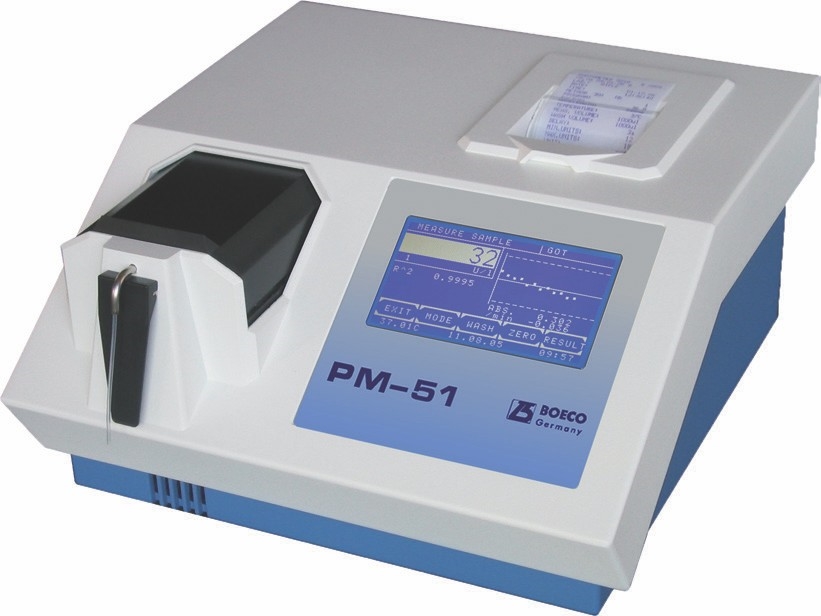

BOECO Clinical Photometer PM-51

Semi-automated photometric system
Effective temperature regulation system
Flexible cuvette concept, interchangeable flow-through or
standard cuvette
Reagent-open system with high capacity for programmable methods
Teach-in capability for reagent application via touchscreen
Minimum sipping volume 250 µl
Double-secured liquid control with infrared bubble detector
Future-proof operation, can easily be upgrated

Specification:
Type:	Semi-automatic, single-beam filter photometer
Light Source:	LED with long lifetime
Wavelength:	340 nm, 390 - 730 nm
Wavelength Selection:	Automatic via 9-position filter wheel: 6 standard interference filters (HBV ≤ 7 nm): 340 nm, 405 nm, 492 nm, 546 nm, 578 nm, 623 nm, 3 positions for optional filter of choice
Photometric Range:	0 - 3,0 A
Cuvette System:	Microflow cell: 32 µl, 10 mm light path interchangeable with normal standard cuvettes (macro or semi-micro, disposable or special optical glass) Temperature Control Internal Peltier element, temperature variable, pre-adjusted to 25 °C, 30 °C and 37 °C Equilibration time for aspirated reaction mixture to reach 37 °C from ambient temperature: 15 sec
Aspiration System:	Built-in peristaltic pump driven by stepper motor programmable aspiration volume controlled by infrared light barrier
Sipping Volume:	Minimum 250 µl, typically 500 µl up to 2000 µl Separate setting of aspirate volme and wash volume
Operator interface:	Touchscreen, for direct functions and alphanumeric inputs
Data Presentation:	Graphic display, White characters or symbols, blue background, lighted, resolution 240 x 126 dots.
Integrated Printer:	Thermal printer, 24 characters per line
Languages:	English, German, Spanish, French and Russian General operating software can be updated by PC Reagent open system with capacity for up to 231 programmable methods Import of data by touchscreen or PC Up to 50 non-linear calibration curves with max 20 sets of points can be stored
Data Logging:	Up to 1000 results can be saved in memory automatically
Signal Port:	1 serial port for connection to an external printer or PC for connection of a bar code reade
Measurement Procedures:	Absorbance Endpoint with standard, factor or multiple standards, with or without reagent blank and/or sample blank Bichromatic end point Kinetics with standard, factor or multiple standards, with or without blank Fixed time with standard, factor or multiple standards, with or without reagent blank Turbidimetry with optional timer function Single, double and triple determinations Curve fitting for non-linear standard curves Free hemoglobin in combination with optional interference filters
Measuring Time:	Kinetic: variable from 3 - 19 deltas, time per delta 3 - 255 sec. Fixed time: variable from 0 - 1800 sec.
Delay Time:	Programmable from 0 - 65535 sec.
Mains Supply:	Range 100 Vac up to 240 Vac at 50/60 Hz
Dimensions:	Length 33 cm x Width 34 cm x Height 18 cm
Weight:	5,0 kg

Code	Description
BOE PM-51	BOECO photometer PM-51, with integrated printer, flow-through cell, standard cuvette adapter and filter wheel (340-405-492-546-578-623 nm), 90-264 V, 50/60 Hz
