Home Laboratory Equipment Muffle FurnaceMuffle Furnace MF 8/1100

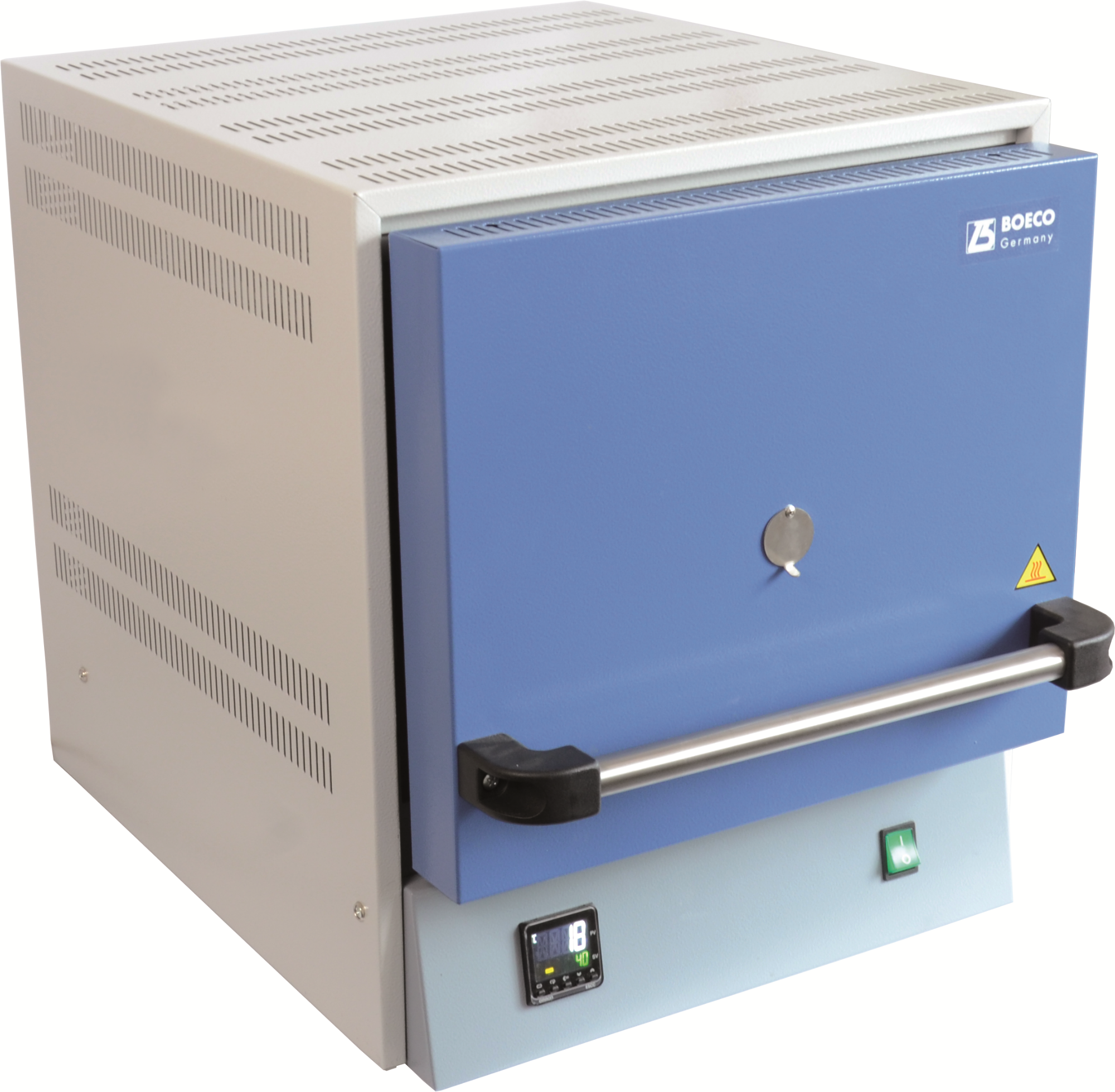

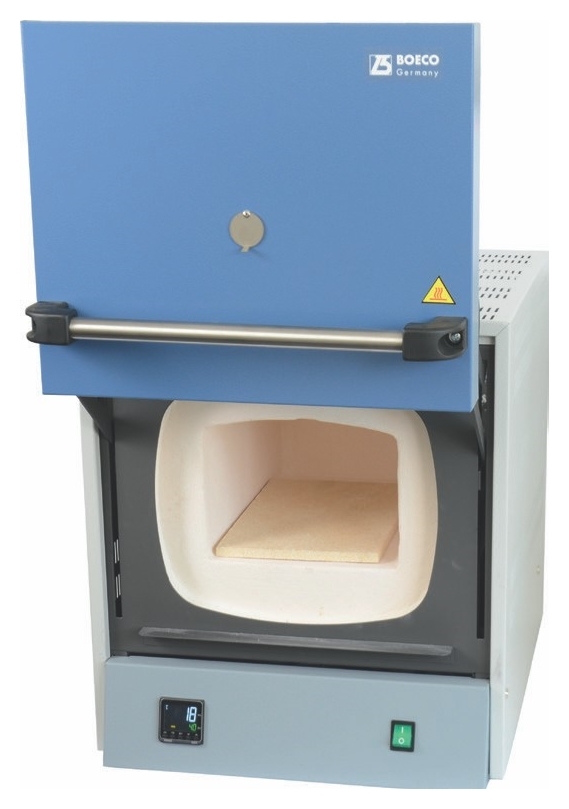

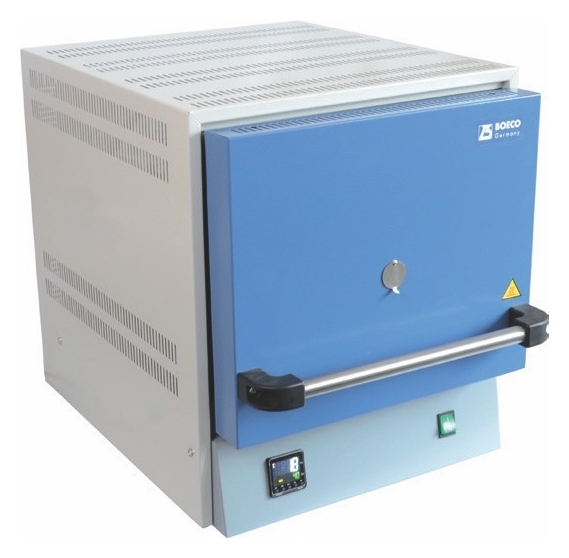

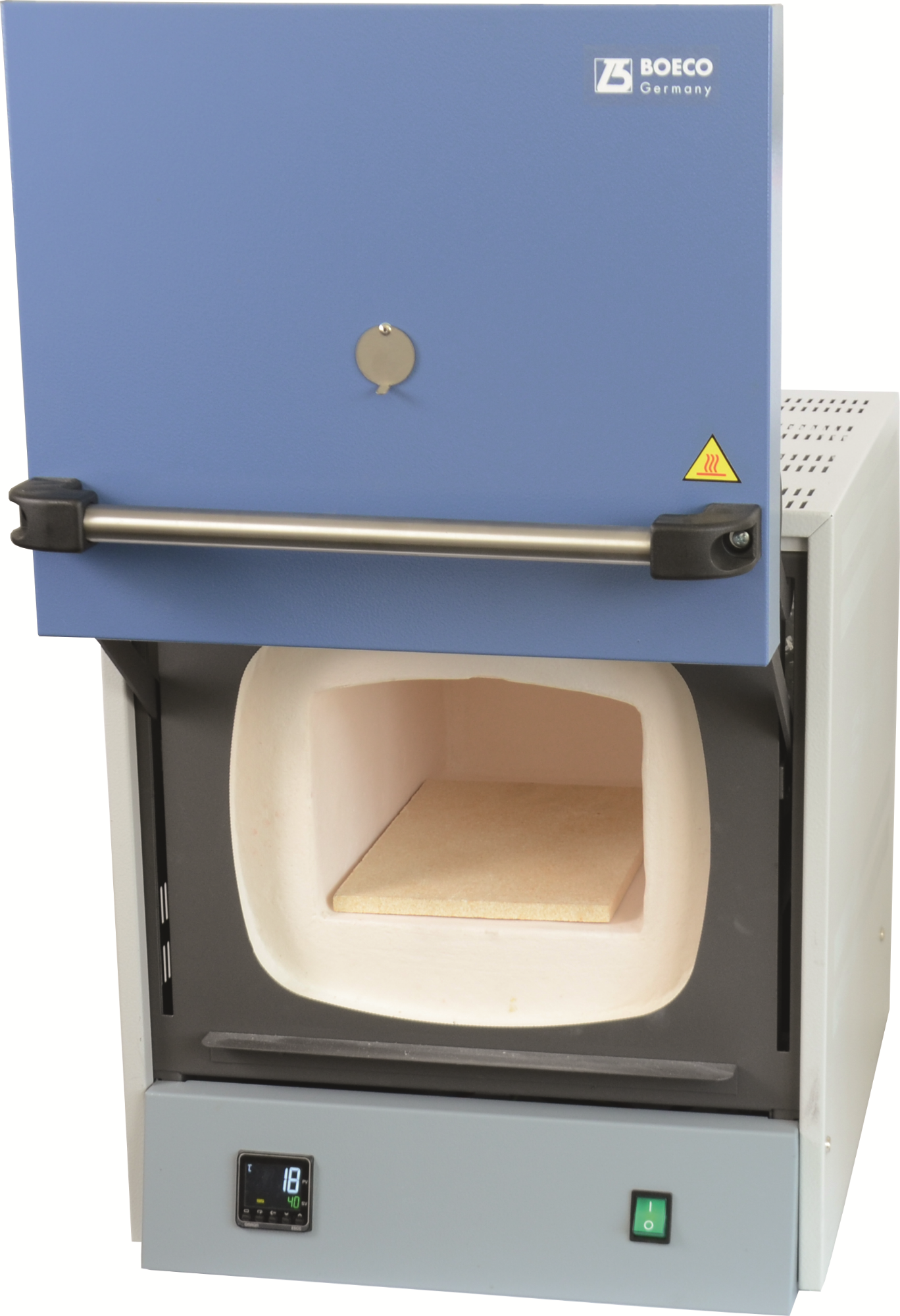

Muffle Furnace MF 8/1100

Our new muffle furnace, designed for materials testing, heat treatment, ceramic and stoneware samples firing. The furnace can be used in laboratories, educational institutions, ceramic studios and industrial laboratories.

Standard design of furnace

Maximum temperature 1100°C
Capacity 8.2 L
High thermal efficiency
Vacuumed ceramic fiber chamber
Heating elements are embedded in fiber
High quality thermoinsulation materials
Door safety interlock switch
Ceramic bottom plate
Fast heating time
Low power consumption
Good stability and uniformity

Control

Microprocessor temperature controller (Omron E5CC)
Temperature measurement by thermocouple type ”K”
PID electronic regulator, double digital display reference temperature and measured temperature

Technical details MF 8/1100
Useful volume	8,2 L
Rated power not more then	1.8 kW
Rated supply voltage	230 V
Rated frequency	50/60 Hz
Number of phases	1
Continuous operating Temperature	1100°C
Maximum temperature	1100°C
Working chamber material	Fibre muffle
Maximum heating- up time (without charge)	50 min
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than	±2°C
Temperature uniformity in working space at rated temperature in thermal steady state without charge not more than	±10°C
Furnace working chamber dimensions
width	200 mm
depth	300 mm
height	133 mm
Furnace dimensions:
width	440 mm
depth	620 mm
height	510 mm
Weight ( Netto)	28 kg

Code	Description
BOE 8641100	BOECO Muffle Furnace, MF 8/1100, 230V, 50/60Hz
BOE 8641100/LHM21	BOECO Muffle Ashing Furnace, MF 8/1100, with Fan-assisted chimney for smoke and humidity extraction, 230 V, 50/60 Hz
