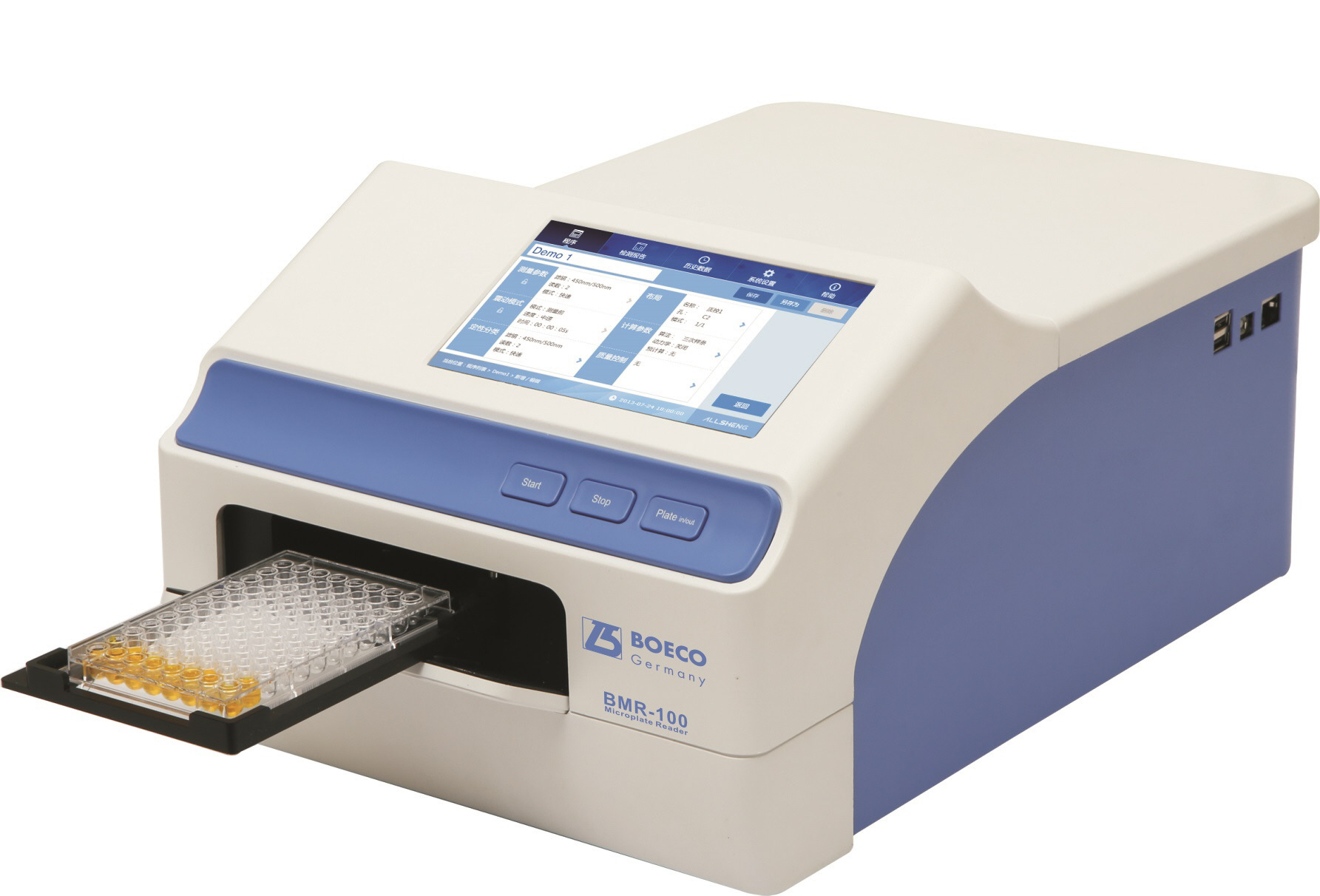

BOECO BMR-100 Microplate Reader
Our BMR-100 Microplate Reader is a reliable and robust instrument for a wide variety of research and clinical applications. It reads various kinds of 96-wells plates and is equipped with shaking function. It can be used as a stand alone instrument or under PC control with a regular or APP software
Safety
The drawer is controlled by a motor, if there is anything blocked when it is closing, the motor would draw back to protect the user. The light source and optical filters can be exchangead without opening the cover.
Software
BMR-100 keeps with high visual and logical user interface of software. It offers a comprehensive inbuilt calculations, such as blank subtraction, quantitative curve fit, qualitative classification and kinetic calculations, as well as the versatile reporting tool and further provides data reduction.
- Easy to use with a 7 inch touch screen together with 3 external keys
- A broad wavelength range of 340-750nm
- Able to use as a stand alone or with PC control software to export the results
- Absorbance range: 0.0~4.000Abs
- 8 position optical filter wheel equipped with 4 standard optical filters
- Fast and accurate measurement of 96-well plates within 6 second
Safety
The drawer is controlled by a motor, if there is anything blocked when it is closing, the motor would draw back to protect the user. The light source and optical filters can be exchangead without opening the cover.
Software
BMR-100 keeps with high visual and logical user interface of software. It offers a comprehensive inbuilt calculations, such as blank subtraction, quantitative curve fit, qualitative classification and kinetic calculations, as well as the versatile reporting tool and further provides data reduction.
| Specification | |
| Display: | 7 inch touch screen (800x480 dots) |
| Light source: | Quartz-halogen lamp 6V/10W |
| Wavelength: | 340-750 nm |
| Optical filter: | Standard filters 405, 450, 492, 630 nm |
| Half-bandwidth of filters: | 3~9 nm |
| Read-out range: | 0~4.000 Abs |
| Linearity (405 nm): | 0~2.000 Abs = ±1%, 2~4.000 Abs = ±2% |
| Resolution: | 0.001 Abs 1 |
| Accuracy (405 nm): | ±1%(0-3Abs), ±2%(3-4Abs) |
| Precision (405 nm) : | CV=0.2%(0-3Abs), CV=1.0%(3-4 Abs) |
| Test speed | <6s for 96 wells plate |
| Incubator: | No |
| Shaking: | 3 modes of shaking: slow, medium and fast |
| User interface: | Integrated software or PC control software |
| Operation: | Touch screen, 3 pcs external keys |
| Storage: | 200 programs and 100,000 test records |
| Ports: | 3 USB ports, for PC, printer and USB-disk |
| Dimensions (W x D x H) | 440 x 295 x 225 mm |
| Weight: | 10 kg |
| Code | Description |
| BOE 8160500 | BMR-100 Microplate Reader with standard filters 405, 450, 492, 630 nm, 100-240 V, 50/60 HZ |
Optional Filters
| Code | Filters |
| BOE 8160511 | Optical filter 340 nm |
| BOE 8160512 | Optical filter 380 nm |
| BOE 8160513 | Optical filter 415 nm |
| BOE 8160516 | Optical filter 540 nm |
| BOE 8160518 | Optical filter 570 nm |
| BOE 8160519 | Optical filter 578 nm |
| BOE 8160521 | Optical Filer 595 nm |
| BOE 8161523 | Optical filter 650 nm |
| BOE 8160514 | Optical filter 690 nm |
