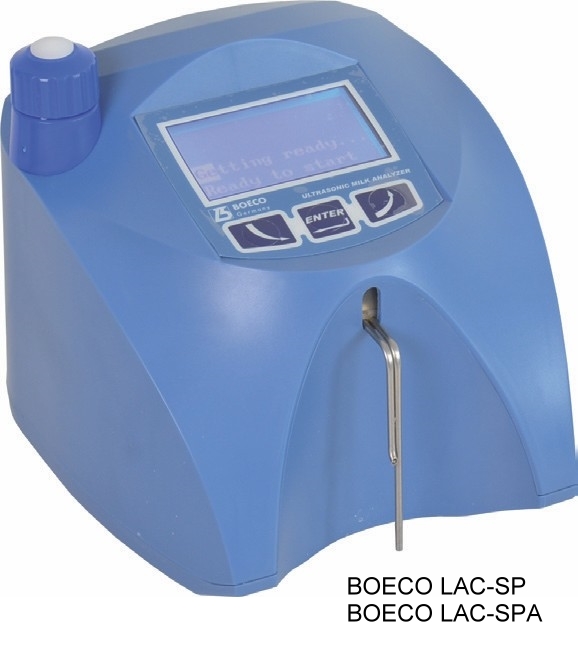

BOECO Milk Analyzer LAC-SP, LAC-SPA
The function of the BOECO Ultrasonic Milk Analyzer is to make quick analyses of milk samples directly after milking, at collecting and during processing.
The BOECO Milk analyzer makes quick analyses of milk and liquid dairy products as: Cow milk, UHT milk, Sheep milk, Goat milk, Buffalo milk, Whey, Cream (up to 45%), Recovered milk.
Each unit will be delivered with 3 calibrations (standard are sheep, cow and UHT milk)
The model LAC-SP has one peristaltic pump for the sample aspiration.
The model LAC-SPA has two pumps. the second one for automatic cleaning
The key features are:
The following Parameters can be measured from the Ultrasonic system:
Fat, Solid-non-fat (SNF), Density, Protein, Lactose,
Milk sample temperature, Added water, Salts, Freezing point.
The following Parameters can be measured from integrated systems:
pH (together with an electrode), Conductivity, Inhibitors
The BOECO Milk analyzer makes quick analyses of milk and liquid dairy products as: Cow milk, UHT milk, Sheep milk, Goat milk, Buffalo milk, Whey, Cream (up to 45%), Recovered milk.
Each unit will be delivered with 3 calibrations (standard are sheep, cow and UHT milk)
The model LAC-SP has one peristaltic pump for the sample aspiration.
The model LAC-SPA has two pumps. the second one for automatic cleaning
The key features are:
- User-friendly: simple in operation, maintenance, calibration and installation
- Portable and compact design
- Very small quantity of milk required (25 ml per one measurement)
- Low power consumption
- No use of hazardous chemicals
- Measuring accuracy adjustment can be done by the user RS 232 interface
- ESC POS Printer Support
- Two samples self-calibration
- Dimensions 175x175x150 mm (WxDxH)
- Weight: < 1,5 kg
- Power: Input 100-240V ~1,6 A max, 50/60 Hz, Output +12V 4.17 A min
The following Parameters can be measured from the Ultrasonic system:
Fat, Solid-non-fat (SNF), Density, Protein, Lactose,
Milk sample temperature, Added water, Salts, Freezing point.
The following Parameters can be measured from integrated systems:
pH (together with an electrode), Conductivity, Inhibitors
| Parameter | Measuring range | Accuracy |
| Fat | from 0,01% to 25% (option 45%) |
± 0.1% |
| SNF (Solids-non-fat) | from 3% to 15% | ± 0.15% |
| Density | from 1015 to 1140 kg/m3 (option 1160 kg/m) |
± 0.3 kg/m3 |
| Protein | from 2% to 7% | ± 0,15% |
| Lactose | from 0.01% to 6% | ± 0.15 |
| Added Water content | from 0% to 70% | ± 3.0% |
| Temperature of milk | from 1°C to 40°C | ± 1°C |
| Freezing point | from -0,4 to -0,7°C | ± 0.001°C |
| Salts | from 0,4 to 1,5% | ± 0.05% |
| pH | from 0 to 12 | ± 0,05% |
| Total solids | from 0 to 50 % | ± 0,17% |
| Option: Conductivity | from 3 to 14 (mS/cm) | ± 0,05% |
| Code | Description |
| BOE 5290800 | BOECO LAC-SP-50 Milk Analyzer, Standard Plastic Model, 50 sec. measuring time, with pH measuring system, USB/RS 232 dataport |
| BOE 5290860 | BOECO LAC-SPA-50 Milk Analyzer, Standard Plastic Automat with 2 peristaltic pumps inside (1 for the sample, 1 for the cleaning) 50 sec. measuring time, with pH measuring system, USB/RS 232 dataport |
| BOE 5291860 | BOECO LAC-SPA-50 Milk Analyzer, Standard Automat Model 50 sec. measuring time, with pH measuring system and integrated Conductivity measurement, real time clock, USB/RS 232 dataport |
| OPTION | |
| BOE 5451160 | High-fat (45%) / Density 1160 kg/m3 measuring function |
