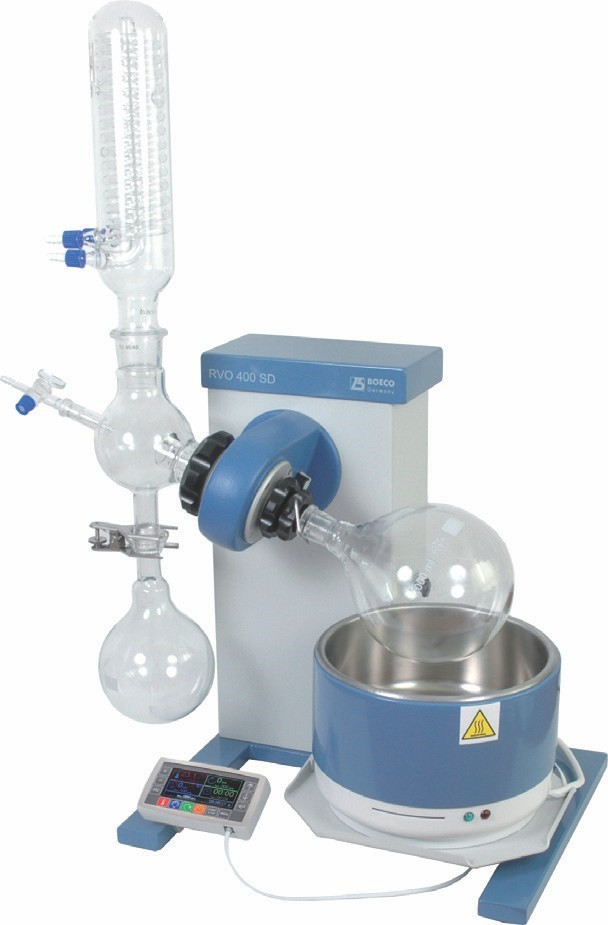

BOECO Rotary Evaporator RVO 400 SD
The RVO 400 SD conforms to the CE mark and all relevant EC standards and DIN norms and has been manufactured under ISO 9001:2000
- With digital display and control
- Water or oil bath
- Motorized lif
- Build in vacuum controler
- Variable inclination angle of evaporating flask
- With vertical or diagonal condenser
- fitted and designed for control and communication by PC
| Technical details: | |
| Receiving flasks: | 100 - 2000 ml |
| Evaporating flasks: | 20 - 4000 ml |
| Rotation speed: | 0 - 280 rpm |
| Bath temperature: | max. 100°C for water filling; max. 180°C for oil filling |
| Regulation accuracy: | ± 1°C up to 100°C; ± 3°C up to 180°C |
| Pressure measurement: | absolute |
| Pressure difference: | adjustable 1-500 mbar. |
| Digital settings: | Temperature, rotations, vacuum |
| Gradient settings: | Temperature, pressure |
| Temperature unit selection: | °C, °K |
| Pressure units selections: | hPa, Torr |
| Cooler condensation size: | 1200 sq cm (double sprial) |
| Switched vacccum pump: | output max 650 VA, input max. 2000 VA |
| Power supply: | 230 V ±10%, 50/60 Hz |
| Power input: | max. 2000 W (excluding vacuum pump) |
| Dimensions in mm (WxHxD): Net weight: | 650 x 900 x 360 (incl. glass) |
| Net weight: | approx 20 kg |
| Code | Description |
| BOE 8090020 | BOECO Rotary Evaporator RVO 400 SD, with heating bath, motorized lift, built-in vacuum contoller, digital measuring and control system with vertical condenser, 230 V |
| BOE 8090021 | Idem for 110 V |
| BOE 8090030 | BOECO Rotary Evaporator RVO 400 SD, with heating bath, motorized lift, built-in vacuum contoller, digital measuring and control system with diagonal condenser, 230 V |
| BOE 8090031 | Idem for 110 V |
Accessories
| Code | Description |
| BOE 8090005 | Safety bath cover, Plexiglass |
| BOE 8090006 | Wireless remote controller |
| BOE 8090007 | PC-based evaporation control software |
