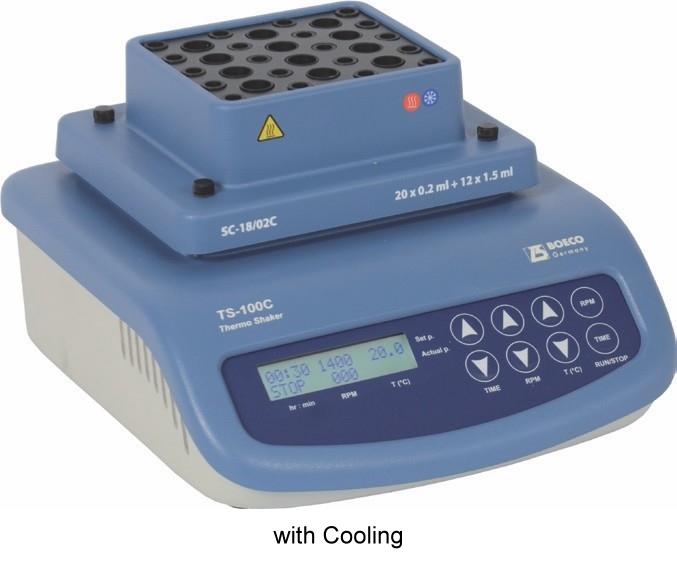

BOECO Thermo-shaker for Microtubes TS-100C

...is a heating and cooling thermomixer.
Active cooling using Peltier technology offers a temperature regulation range from +4°C to + 100°C. Temperature control and mixing modes can be used simultaneously and independently. The TS-100C is microprocessor controlled and has a display which indicates simultaneous set and actual time, temperature and shaking speed. The low voltage power supply enables safe cold room or incubator operation. The TS-100C is applicable for DNA analysis, extraction of proteins, polysaccharids, lipids and other cell components.

Specification:
Speed range:	250 - 1400 1/min, increment 10 rpm
Acceleration time:	3 sec
Orbit size:	2 mm
Temperature control range:	15°C below room temp. to +100°C
Temperature setting range:	+4°C to 100°C
Average heating rate:	5°C / min (from +25 to +100°C in 15 min)
Average cooling speed:	From +100°C to + 25°C: 5°C / min
	From +25°C to + 4°C: 1,8°C / min
Timer with sound signal:	digital, 1 min - 96 h, increment 1 min
Power (external):	DC 12 V. 5 A
Overall size:	205 x 230 x 130 mm (w x d x h)
Weight:	3,7 kg

Code	Description
BOE 8064050	Thermo-Shaker for microtubes TS-100C, without block, AC 100-240V 50/60 Hz

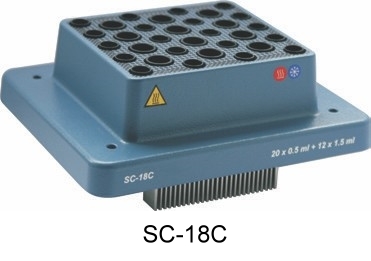

BOE 8064051	Interchangeable block, SC-18C for 20x0,5 ml and 12 x 1,5 ml microtubes

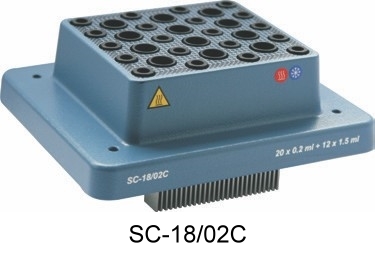

BOE 8064054	Interchangeable block, SC-18/02C for 20x0,2 ml and 12 x 1,5 ml microtubes

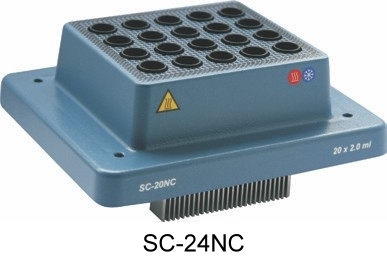

BOE 8064057	Interchangeable block, SC-24NC for 24x1,5 ml microtubes

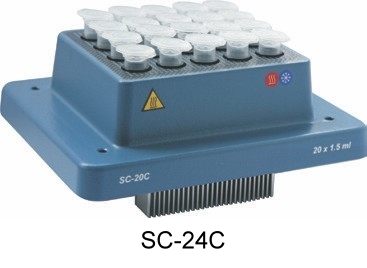

BOE 8064055	Interchangeable block, SC-24C for24x2,0 ml microtubes

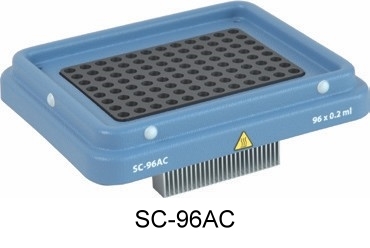

BOE 8064056	Interchangeable block, SC-96AC for 96-well PCR microplate
