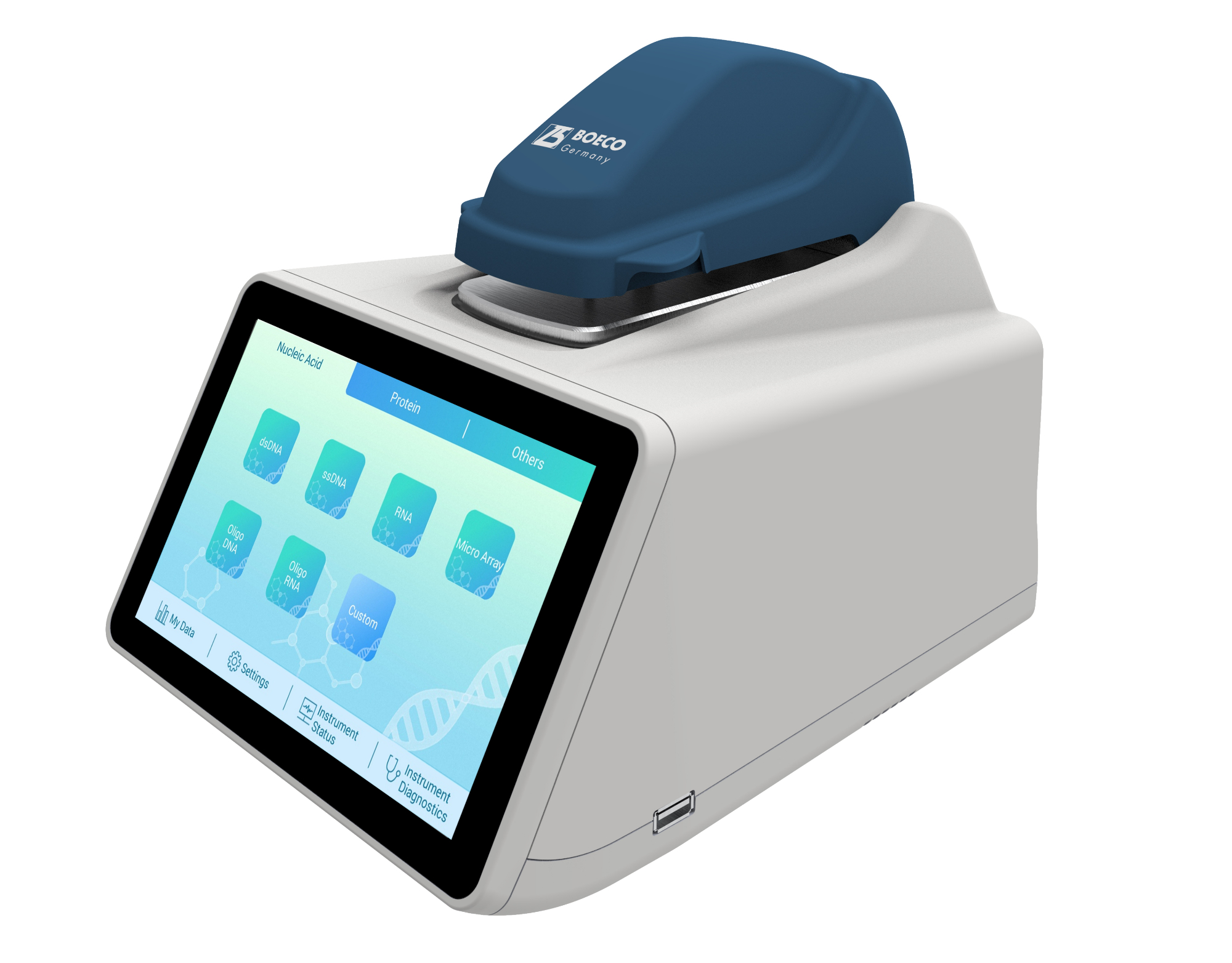

Boeco Micro UV-VIS Spectrophotometer models N-1 touch & N-1c touch

The Android operating system, optimized for the touch operation habits, improves the operating feelings.
The integrated design and compact size are ideal to save the space in the crowded laboratories, or as the in-vehicle mobile inspection device.
It can be applied to the concentration detection of nucleic acids, proteins, bacterial cell cultures, etc., as well as the absorbance measurement of unknown samples.
The variable path length of the N-1C Touch Micro US-Vis Spectrophotometer realizesboth the minimum sample volume pedestal detection as low as 0.5μL, suitable for precious samples, and the detection to the high concentration samples without dilution at all. Including the liquid drop, it builds in the standard cuvette detection module for more use.

Features

Large size colour touch screen
Built-in-7-inch high resolution color touch screen for more detection information, all operations can be done on the screen.

Two models in one (N-1C Touch)

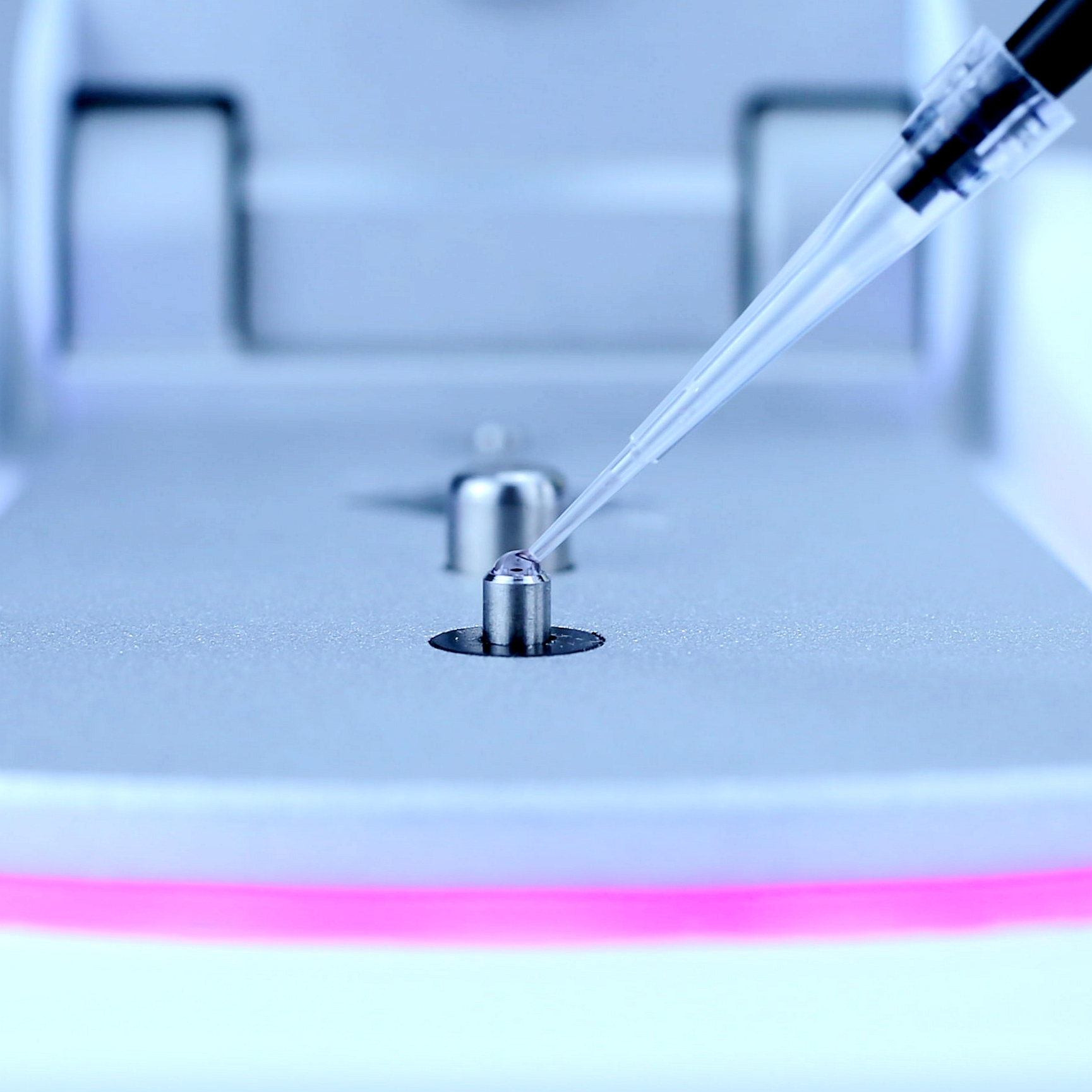

Pedestral Micro volume or cuvette mode, to meet the flexible detection
need. The cuvette module has a heating stirrere.

Wide detection range
The 0.03 minimum detection path length, combined with a new generation spectrophotometer, increases the maximum detection concentration to 27,500 ng/μl and the lowest detection concentration as low as 0,2 ng/μl

Stability for long life
Long-life xenon flash lamp of Hamamastu ensures stability of detection and the long life of the instrument.
The lifting detection base with sliding bearing structure has high precision, not easy to damage..

Ultra-wide wavelength range
With continuous wavelength range as 185-910nm, the instrument can detect various samples through selecting any band. It adapts to a variety of detection requirements with wide range of near infrared wavelength.

Accurate path length
The stepper motor combined unique double track technology (DPTL), allows the precision of optical path length as 0.001mm, thus to achieve highly repeatability of absorbance detection.)

Cuvette detection mode (N-1C Touch)
The cuvette detection mode comes with magnetic stirring function. User can set the heating function and stirring speed for dynamic analysis detection.
And the user can define different path length, such as 1mm, 2mm, 5mm,10mm.

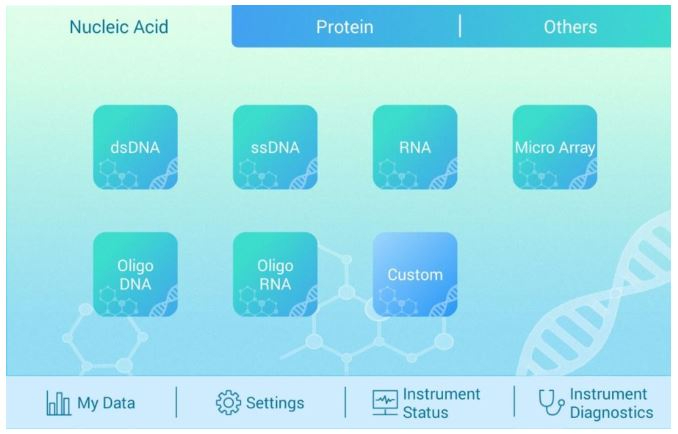

Android operating system
The spectrophotometer has a built-in operating system and detection software, without need of a computer. Graphical touch operation is in line with user friendly design and imporves work effiicency.

Light status
The lighting strip around the test stand flashes with different states to show the detection process straightforwardly

Multi-functions

Nucleic acid detection
Built-in common calculation formula of dsDNA, ssDNA, RNA, Oligo-DNA, Oligo-RNA, can get the concentration and purity of samples automatically.

UV visible custom scanning
In the full wavelength range, set the detected wavelength through increasing or decreasing wavelength with 1 nm as expected.

Nucleic acid fluorescence marker detection
Preinstall extinction factor of commonly used fluorescent dyes of dsDNA, ssDNA, RNA, Oligo-DNA, Oligo-RNA.

Protein detection
Can detect the concentration of protein solution, or detect protein concentration of dye marker. Built-in common detection methods of BCA, Bradford, Lowry, Pierce 660nm.

Cell detection
Can detect absorbance value at 600nm automatically. Meanwhile, it can
detect absorbance value at any band under set wavelength range.
