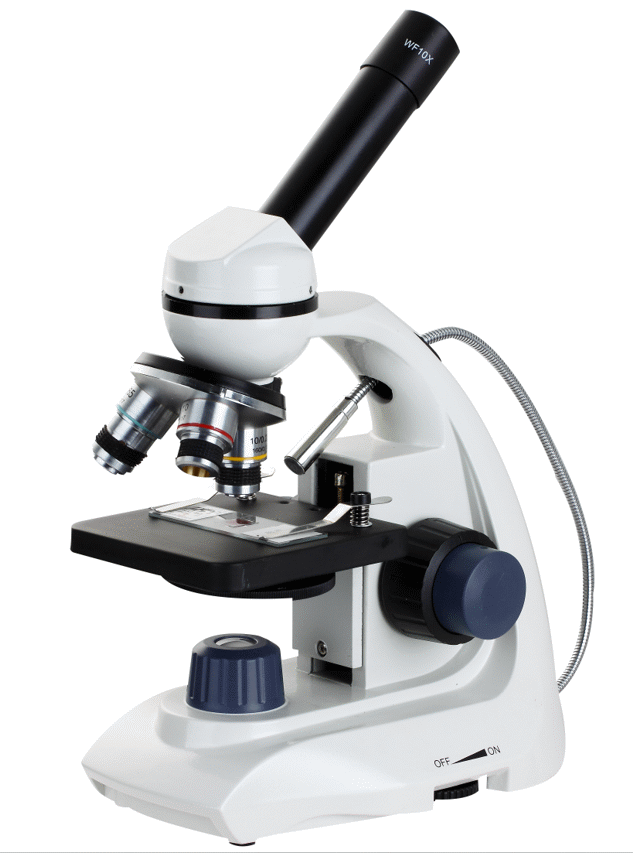

BOECO Monocular Microscope BM-1
| Specification | |
| Eyepieces: | WF10X/16, WF25X |
| Objectives: | Achromatic Objectives 4X/10X/40X |
| Optical system: | Monocular head, inclined at 30° |
| Nosepiece: | Triple Nosepiece |
| Condenser: | NA 0.65 with Disc Diaphragm |
| Stage: | Plain stage with Slide Clips 95 x 95 mm |
| Focusing System: | Coaxial Course and Fine Adjustment |
| Illumination: | Up and down LED illumination |

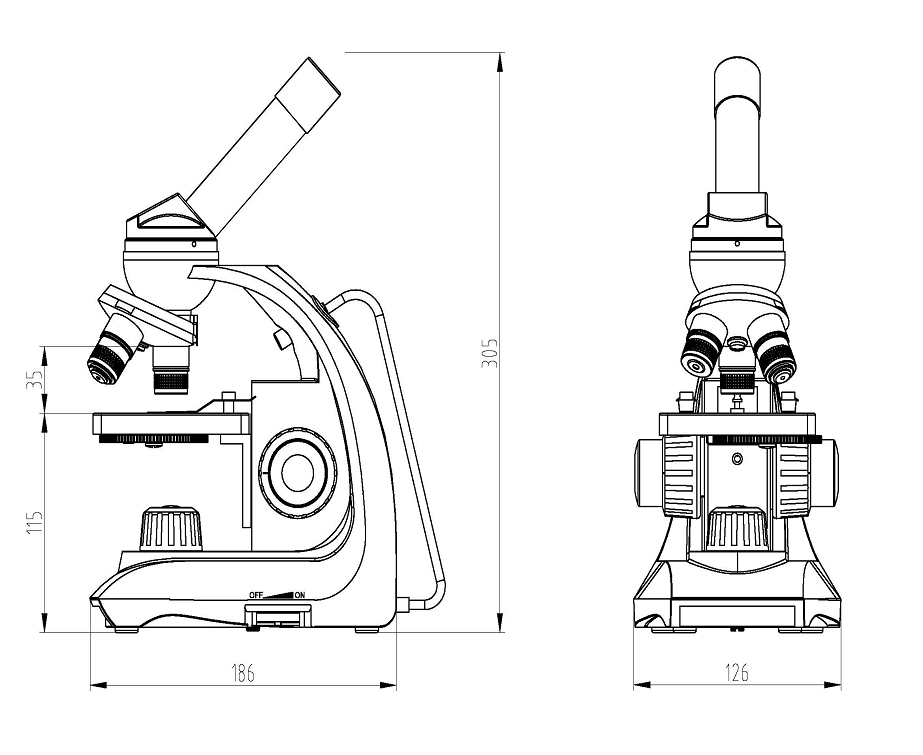

| Dimension: | 126 x 186 x 305 mm |
| Net weight: | 1,9 kg |
| Carton size: | 27,8 x 19,2 x 42,5 cm, Gross weight 2.9 kg |
| Code | Description |
| BOE 1111.010 | BOECO Monocular Microscope BM-1 |
Optional:
| Code | Description |
| BOE 1111.100 | Achromatic Objective 100X |
| BOE 1111.321 | Spare 0,1W LED lamp |
