BOECO Balances BXX PLUS

BOECO Balances BXX PLUS

Our new advanced touch screen Semi-Micro and Analytical balances with internal calibration.

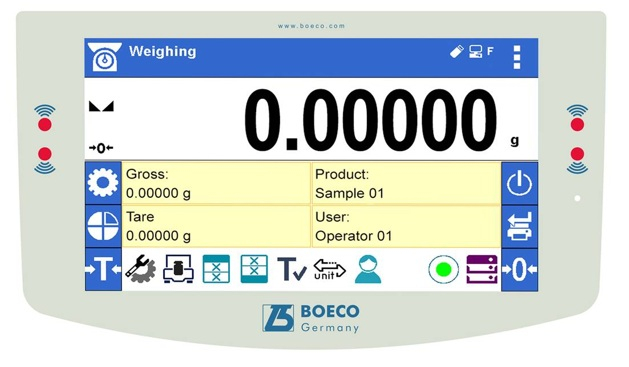

- 5“ colour capacitive touch-screen / maximum comfort of operation
- Personal display design allows using a wide selection of widgets
- Multilingual, interactive menu
- Built-in IR sensors allow numerous operations (touch-free operations)
- Conformity with GLP and GMP regulations
- Dynamically controlled sample weight (bar graph)
- Statistics, formulations, reports and printouts
- Alibi memory with record of measurements
- Complex databases

Functions:

  • Autotest
  • Dosing
  • Percent weighing
  • parts counting
  • peak hold
  • formulation
  • newton unit measurement
  • statistics
  • checkweighing
  • ir sensors
  • under hook weighing
  • GLP procedures
  • animal weighing
  • air density
  • correction
  • density determination
  • ambient conditions
  • replaceable unit
  • alibi memory
  • mass for titrator



Menu navigation selectable in many languages: GB / SP / D / F / I / PL / CZ

Specification BXX 22 PLUS BXX 30 PLUS BXX 31 PLUS
Max. capacity 82 /220 g 310 g 220 g
Minimal load 0,001 g 0,01g 0,01 g
Readability 0,00001/0,0001 g 0,0001 g 0,0001 g
Tare range - 220 g - 310 g - 220 g
Repeatability 0,000015/0,0001 g 0,0001 g 0,0001 g
Linearity ± 0,00006/0,0002 g ± 0,0003 g ± 0,0002 g
Pan size ø 70 / 85 mm ø 85 mm ø 85 mm
Stabilization time 6 / 3,5 sec. 3,5 sec. 3,5 sec.
Calibration Internal (automatic) Internal (automatic) Internal (automatic)
Interface 2xRS232, 2xUSB(A+B), WIFI (optional) 2xRS232, 2xUSB(A+B), WIFI (optional) 2xRS232, 2xUSB(A+B), WIFI (optional)
Display 7“ colour graphic touch-screen 7“ colour graphic touch-screen 7“ colour graphic touch-screen
Working temperature +10°C - +40°C +10°C - +40°C +10°C - +40°C
Power Supply 110-230 V AC, 50/60 Hz 110-230 V AC, 50/60 Hz 110-230 V AC, 50/60 Hz
Netweight / Grossweight 5,4 kgs / 9 kg 5,4 kgs / 9 kg 5,4 kgs / 9 kg
Size / Packing size 333x206x355 / 495x400x515 mm 333x206x355 / 550x460x580 mm 333x206x355 / 495x400x515 mm
Model Readability Capacity

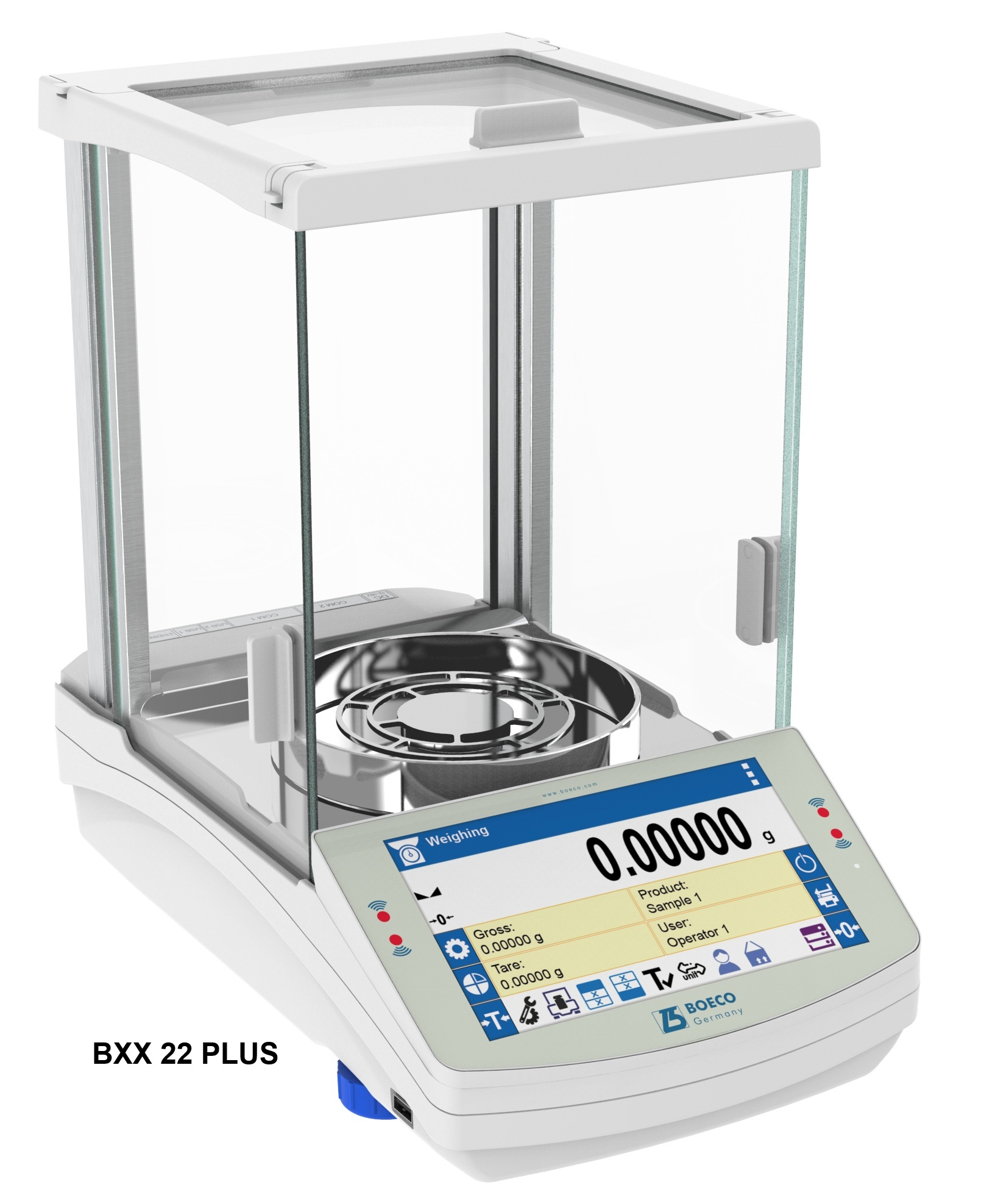

BXX 22 PLUS 0,00001 g 82 g
(dual range) 0,0001 g 220 g

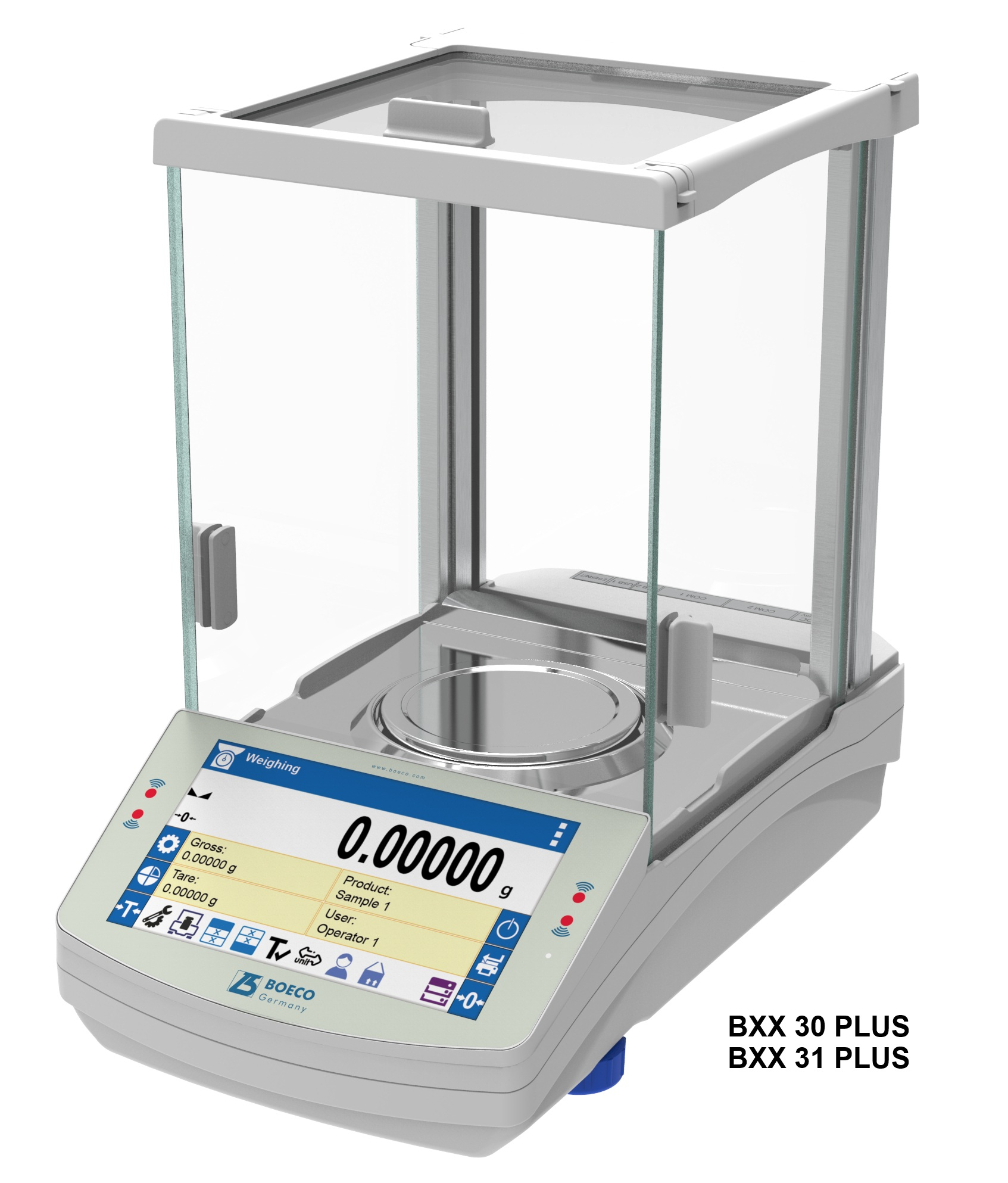

BXX 30 PLUS 0,0001 g 310 g
BXX 31 PLUS 0,0001 g 220 g
