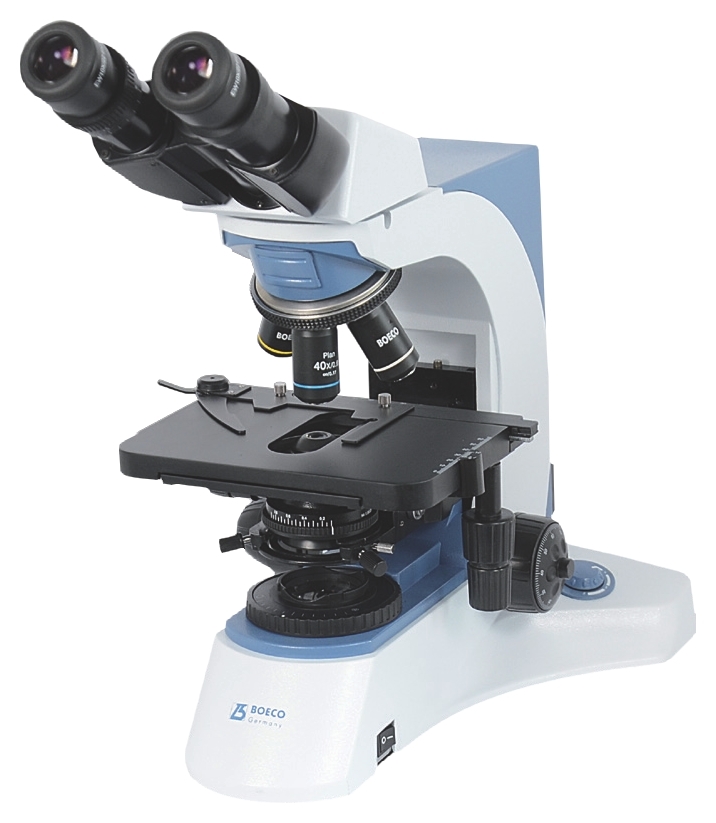

BOECO Laboratory Binocular Microscope BM-800

Specification
Optical System: Infinity corrected system, field diameter 22 mm
Vieving Head: Bin- or Trinocular compensation free head, 30° inclined, 360° rotatable, Interpupillary distance 48 - 75 mm
Nosepiece: Backward quintuple revolving nosepiece
Eyepiece: Larger viewing area with extra wide field eyepiece EWF 10X /22 mm
Objectives: BOECO Infinite corrected Plan Achromat Objectives 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1.25 (S, Oil)
Stage: Large sized double layer mechanical specimen stage. 185 x 142 mm, Moving range 75 x 55 mm,
Focusing: Coaxial coarse and calibrated fine focus control,
fine division 0,001 mm, Coarse stroke 37,7mm/rotation
fine stroke 0,1mm/rotation, mowing Range 24 mm
safety autofocus stop unit.
Condenser: Swing condenser, N.A. 0,9/0,25,
Field diaphragm: With aspherical condenser and Köhler Illumination
Illumination: 5W LED lamp, light intensity adjustable.
Body /power: Modern and ergonomic body made from die-cast aluminium with inbuilt power supply 110-240V, 50/60Hz
Supplied with: Dust cover, immersion oil, green filter and instruction manual
Dimension: 280 x 358 x 304/416 mm, net weight 10,0/10,4 kgs

Code Description HeadPlug
BOE 8000.550BM-800/I/PL Binocular Euro
BOE 8000.551BM-800/I/PL Binocular US

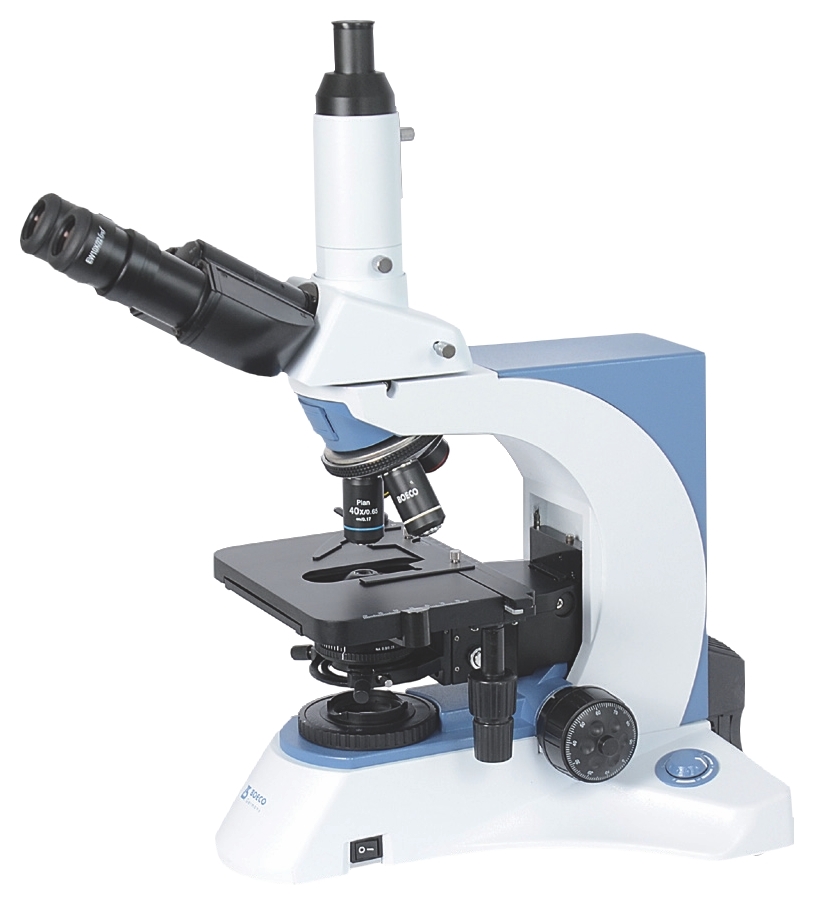

BOE 8000.560BM-800/T/I/PL Trinocular Euro
BOE 8000.561BM-800/T/I/PL Trinocular US
