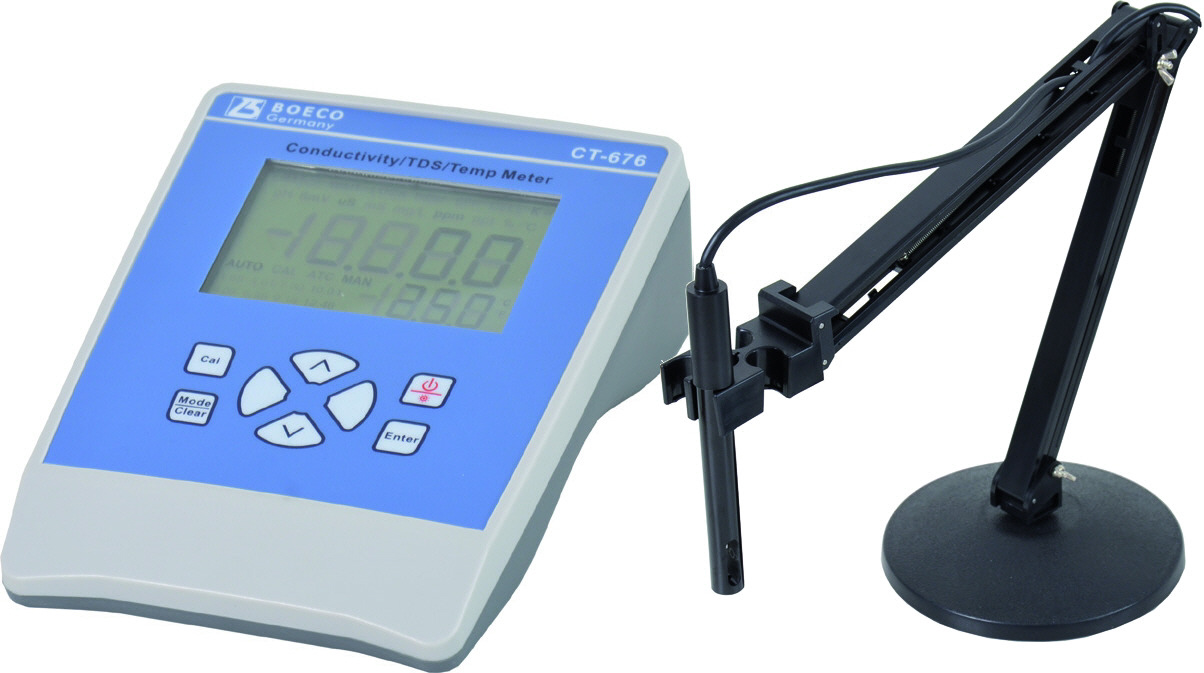

BOECO Bench Top Conductivity - CT-676

(1)

Simultaneous displays of conductivity, salinity or TDS with temperature measurements.
Convenient one point calibration. Calibration data is stored in memory and is ready for use on power up.
Adjustable TDS coefficient, reference temperature and temperature coefficient
Uses one conductivity cell for conductivity, salinity and TDS measurement
Accepts 4-wire conductivity cells with k=0,475 cell constant and 2-wire K=0,1 cell constant for improved flexibility and accuracy
Low battery indicator
IP54 waterproof case

The CT-676 will be delivered incl. the following standard accessories:
1 x 4-wire conductivity cell 3020P with k=0,475,
6 x 1,5V AAA batteries,
1 x operating manual,
1 x flexible electrode holder

Conductivity K = 0,475
Range	Resolution	Accuracy
0,0 to 475µS/cm	0,1µS/cm	±1% of reading +2µS/cm
475 to 4750µS/cm	1µS/cm	±1% of reading +5µS/cm
4,75 to 47,50mS/cm	0,01mS/cm	±1% of reading +0,05mS/cm
47,5 to 200,0mS/cm	0,1mS/cm	±2,5% of reading +0,5mS/cm

Conductivity K = 0,1
Range	Resolution	Accuracy
0.00 to 99,99µS/cm	0,01µS/cm	±1% of reading
100 to 200µS/cm	0,1µS/cm	0,1µS/cm

Salinity
Range	Resolution	Accuracy
0,0 to 70,0 ppt	0,1 ppt	± 0,2 % Full Scale

Temperature
Range	Resolution	Accuracy
-10,0 to 90,0 °C	0,1 °C	±0,2 % or ±4% Full Scale whichever is greater

Specification
Reference Temp.:	From 15,0 to 25,0°C, default is 25,0°C
Temperature Coefficient:	From 0,00 to 4,00 °C, default is 1,91°C
TDS Constant:	From 0,30 to 1,00, default is 0,65
Cell Constant	4 wire conductivity cell: K = 0,475
ATC	Thermistor, 10K ohms, at 25°C
Power Requirement:	6 x 1,5 Volt AAA batteries or AC adaptor
Dimensions (LxWxH):	150 x 203 x 72 mm
Weight:	0,54 kg (6 x 1,5 V AAA Batteries included)

Code	Description
BOE 5196760	Bench Top Coductivity/Salinity/TDS/Temperature Meter, Model CT-676 with 4-wire Conductivity Cell 3020P with 6 PIN connector, K=0,475 (50µS - 200mS/cm), with EURO plug
BOE 5196761	Idem, with US plug AC adaptor

Optional Conductivity Cell

Code	Description
BOE 5190109	-wire Conductivity Cell 109P with 6 PIN connector, K=0,1 (0,0 - 200,0µS/cm)
