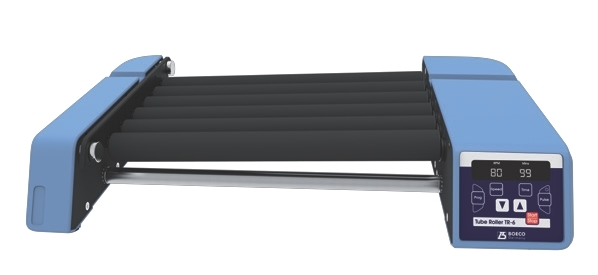

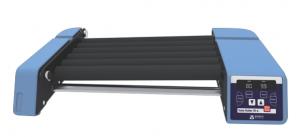

BOECO Tube Roller TR-6

BOECO Tube Roller TR-6
the microprocesor conrolled BOECO TR-6 provides gentle rocking and rolling motion. The user can define programs (speed & time) and its Pulse mode provides a momentary pause for through mixing (Pulse can be set for a range of 30 sec to 90 sec. time) The rollers are fully autoclavable and easy to remove which could allow to use bigger tubes.
Specification:
Housing: Plastic (ABS)
Motion: Rolling & Rocking
Teilt angle ±3°
Motor: Brushless DC motor
Speed range: 10 - 80 rpm / 1 rpm
Speed display: LED
Timer: 1 minute to 99 min, / non-stop
Roller: 6 Rolls / 5 positions (Nylon - autoclavable)
Roller Length: 327 mm
Max Loading capacity 2 kg
Protection class IP 21
Permissible ambient temp. 4°C to 50°C
Permissible rel. humidity <80°C
Input voltage 100-240 VAC, 50/60 Hz
Output volateg 24VDC
Overall size: 505x293x90 mm (from 2019: 505x323x90)
Weight: approx. 4,2 kg
Code Description
BOE 8025000 Tube roller TR-6, AC adapter 100-240V, 50/60Hz
