Home Laboratory Plasticware Reusable PlasticwareGraduated Cylinders, PMP

Graduated Cylinders, PMP

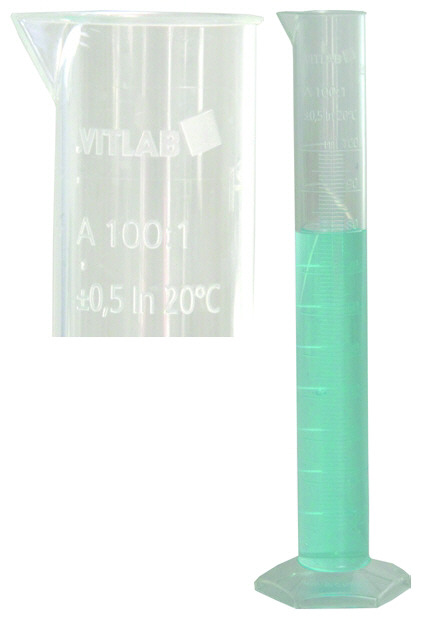

Class A per DIN 12681/ISO 6706, crystal clear.
Certified compliant With a raised scale and ring marks at the primary scale points, calibrated ‘in’, hexagonal base.
With laser engraved batch number and the year of manufacture. The lot certificate supplied bears the batch number and the actual nominal value ascertained under the test conditions. Thermal stess up to 121°C (autoclaving) does not cause tolerance limits to be permanently exceeded

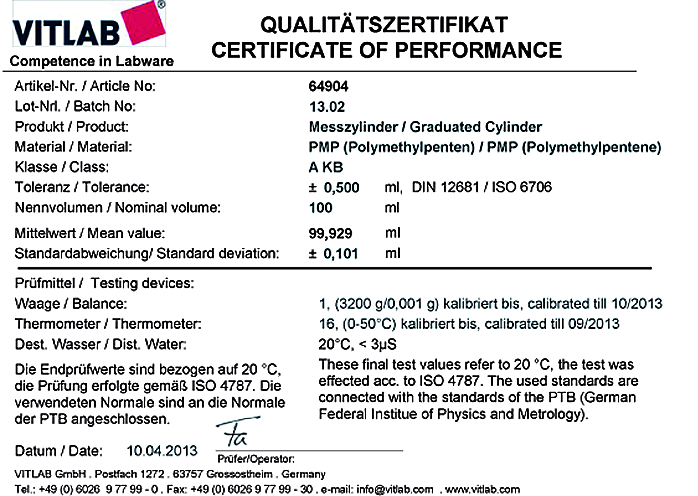

Sample of the lot certificate supplied which bears the batch number and the
actual nominal value ascertained under the test condition:

Volume	Art. No.	Tolerance	Graduation	Height	Packing
10 ml	VIT 646-04	± 0,10 ml	0,2 ml	145 mm	2
25 ml	VIT 647-04	± 0,25 ml	0,5 ml	170 mm	2
50 ml	VIT 648-04	± 0,50 ml	1,00 ml	200 mm	2
100 ml	VIT 649-04	± 0,50 ml	1,00 ml	250 mm	2
250 ml	VIT 650-04	± 1,00 ml	2,00 ml	315 mm	2
500 ml	VIT 651-04	± 2,50 ml	5,00 ml	360 mm	1
1000 ml	VIT 652-04	± 5,00 ml	10,00 ml	440 mm	1
2000 ml	VIT 653-04	± 10,00 ml	20,00 ml	482 mm	1

Graduated Cylinders, PMP
