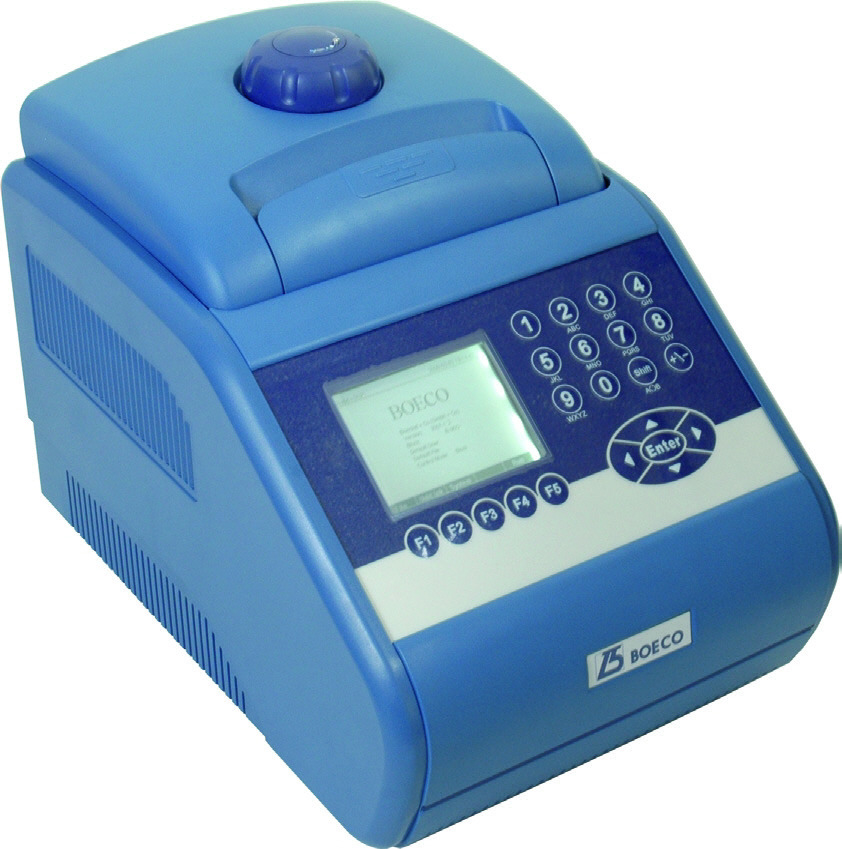

is a multifunctional compact sized thermal cycler equipped with high end Peltier technology. His five interchangeable sample block give the BOECO
TC-PRO an exeptional versatility for PCR methods using tubes, strip wells or plates. Its high ramping rate and precision temperature control provide fast, accurate results. The extra large display and user-friendly interface make operation easy. The unit automatically recognizes which sample block is in place, eliminating the need for a operator to manually supply this information. The instument can work either by itself or with computer control. One computer can control up to 30 sets of the thermal cyclers.
The TC-PRO is not available for sales in Germany.
| Specification | |
| Temperature control range: | + 4 ~ +99 °C |
| Heating Rate (Max): | ? 4,0 °C /sec |
| Cooling Rate (Max): | ? 4,0 °C /sec |
| Block Temp. Uniformity: | ?± 0,3 °C |
| Block Temp. Accuracy: | ?0,1 °C (55 °C), £0,2 °C (90 °C) |
| Temp. of Hot Lid: | 30°C - 110 °C |
| Gradient Range: | 1 °C - 30 °C |
| Temp. Control Mode: | Block or Tube |
| Program Storage: | ? 100 files (No limitation with USB flash disk) |
| Max. Segments | 5 segments |
| Max. Program Steps: | 16 steps |
| Max. Cycles: | 99 cycles |
| Power, max: | 600 W |
| Size: | 368 (L) x 250 (W) x 285 (H) mm |
| Weight: | 6,3 kg (Main body) + 4,2 kg (block) |
| Interface: | USB, LAN |
| Operation System: | Windows 2000 / XP (Memory:> 256M, Hard disk: >10G, CPU: Pentium 4) |
| Code | Description |
| BOE 8085000 | Thermal cycler TC-PRO, AC 110-240 V |
Accessories
Interchangeable Blocks
