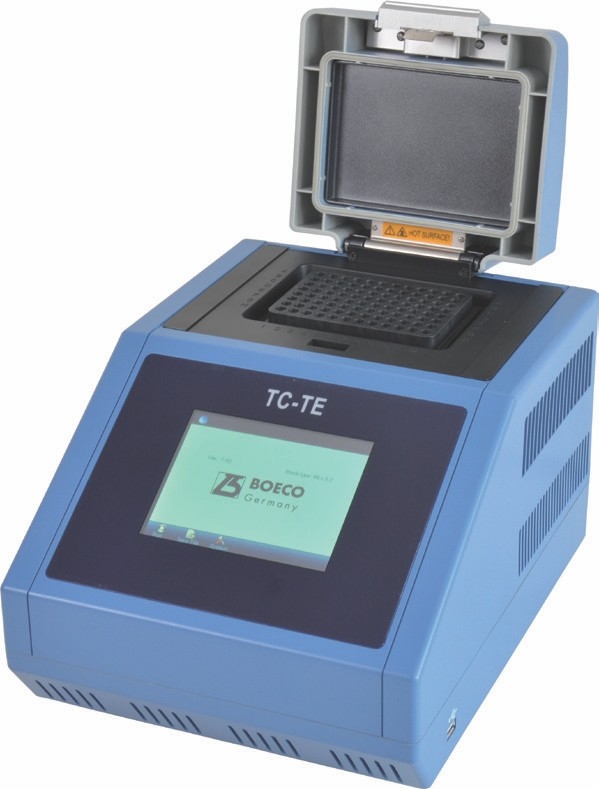

BOECO Thermal Cycler TC-TE

A personal Thermal Cycler with compact structure and small footprint and a friendly user interface with colored 5,7’ touch screen and a fixed gradient block for 96 x 0,2 ml which gives reliable results for teaching and research laboratories.

Sample capacity:96 x 0,2 ml, 8-strip, 24 x 0,2 ml plate
Cooling technology:Peltier
Temperature control range:+ 4 ~ +99°C
Heating speed of ramping:up to 4,0°C /sec
Cooling speed of ramping :up to 4,0°C /sec
Block temp. uniformity:? ± 0,3°C
Block temp. accuracy:? ± 0,1°C (55°C) ?± 0,2°C ( ? 90°C)
Display resolucion:0,1°C
Temp. control mode:Block or Tube
Ramping rate adjustable:0,1°C - 4°C
Memories:250 typical programs (unlimited by USB)
Max. cycles:99 cycles for Nested PCR
Time up/down:0-9 min59s, suit for LongPCR
Temperature up/down:0,1 - 9,9°C suit for TouchdownPCR
Soak function:Yes
Gradient range:30°C ~ 105°C
Temp. differential range:1°C ~ 30°C
Temp. of hot lid:30°C -110 °C (Temp. / pressure adjusted)
Size:335 (W) x 260 (D) x 270 (H) mm
Weight:8 kg
Interface:1 x USB
Power Suppply:100 - 240V, 50-60 Hz <= 600W
BOE 8089602Thermal cycler TC-TE, 100-240 V, 50-60 Hz with gradient sample block for 96 x 0,2 ml
