Water Purification

The all-rounder for H2O pure type ASTM I + ASTM II

The BOECOpure PLUS xstouch is an extremly compact system to produce ultrapure water fulfilling highest demands of analytical and life sciences laboratories and can be directly connected to the drinking water supply.

Scroll and swipe to the next function with the intuiitive Optifilltouch display and integrated monitoring unit. Adjustable limit values for conductivity and TOC, as well as data output via USB increase process reliability under considerati- on of highest sustainability.

Save valuable space in your lab. Configure and place the production unit under the bench and position your Optifilltouch dispenser and monitoring unit practical on a bench or space-saving on a wall.

Retractable and pivotable with a flexible connection for the most comfortable supply of ultrapure water to any vessel.

Features:
» Reliable ASTM I + II water quality supply
» Optifilltouch dispenser as standard:
» enables one handed dispenser operation
» Colour-touch-display with intuitive menu navigation
» is detachable and ergonomically shaped
» can be turned by 170 degrees/80 cm in diameter and is height adjustable
» Simple and economical filter replacement
» Real time TOC monitoring
» Residual cartridge volume display
» USB-Port for data in- and output
» Leak detector is included as a standard
» Supply including all mandatory filters and consumables for start-up and operation

The BOECOpure PLUS XStouch UV-TOC/UF is supplemented with UV-oxidation, 185/254 nm.

ASTM Type I Ultrapure water applicable for
Life science and microbiology and cell culture media

ASTM Type II pure water applicable for
Rinsing laboratory glassware, preparing and diluting buffers, reagents, tissue culture media and dyes.
Sample preparation for analytical methods such as flame AAS

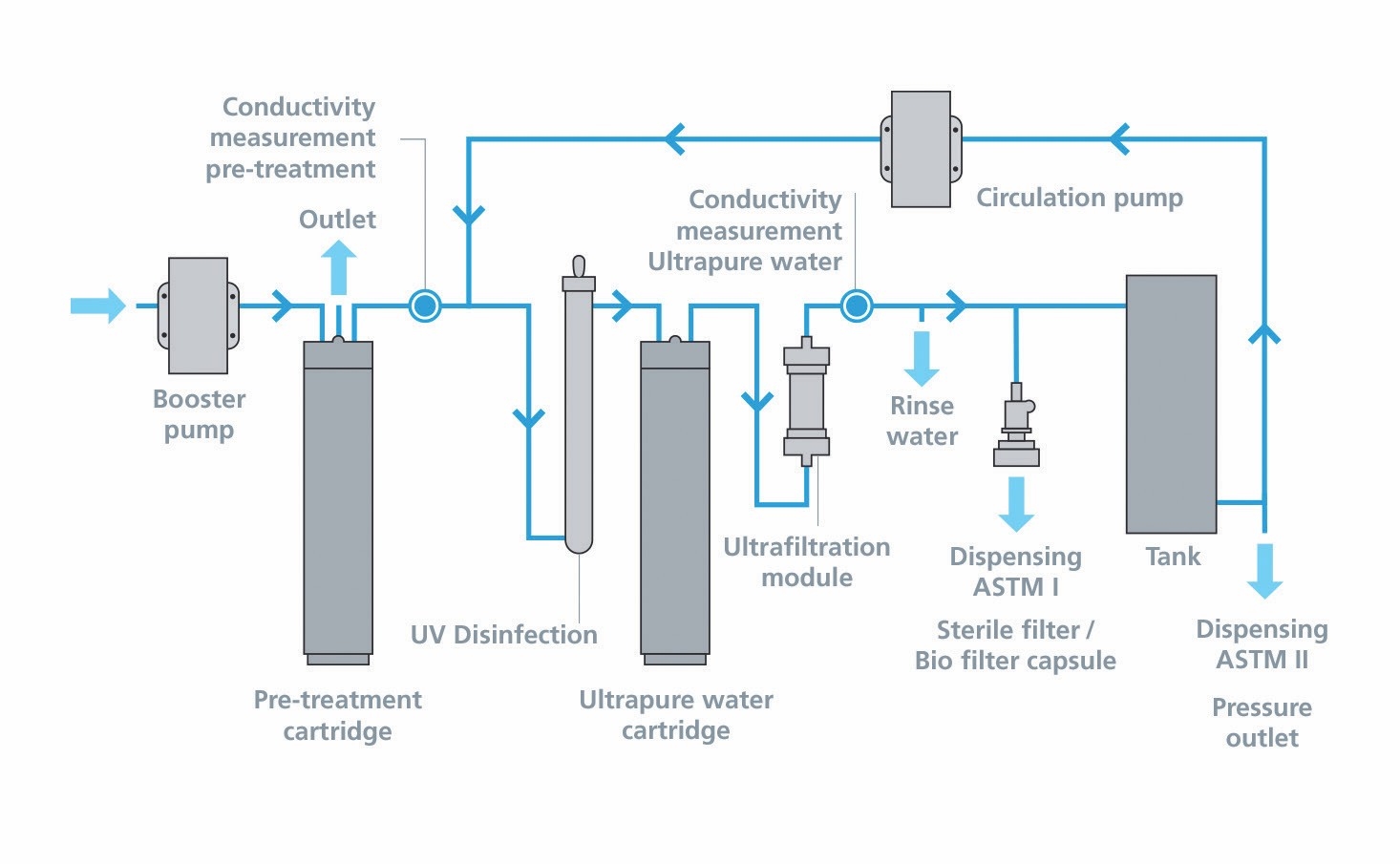

BOECOpure PLUS UV/UF Flow chart

The all-rounder for H2O pure type ASTM I + ASTM II

If both, pure and ultra pure water in small quantities is required, BOECOpure PLUS is the perfect system.
The ability to provide both types from a single system results from the
combination of ultramodern purification technologies. These also make it
possible to connect the system directly to a drinking water tap.

A press on the dispenser button activates dispensing of ultrapure water type ASTM I via the digital dispenser control. The recirculation of the pure water held in the installed 10 litre tank keeps it permanently at type ASTM II quality.

Features:

• OptiFill dispenser is standard
• TapWater set for direct connection to a drinking water tap
• 10-litre pure water tank has a pressure outlet
• Tank volume display in percent
• Simple and economical filter replacement
• Leakage sensor is standard
• Type ASTM I dispensing performance is 1,6 / 2 l/min.
• Type ASTM II draw-off is up to 6 l/h / 12 l/h
• Ready-to use, including filter cartridges
  (Pre-treatment cartridge with RO membrane and ultrapure water cartridge)

ASTM Type I Ultrapure water applicable for

Molecular biology, microbiology, PCR, inorganic and organic trace analysis
HPLC, ICP, TOC-analysis

ASTM Type II pure water applicable for

Rinsing laboratory glassware, preparing and diluting buffers, reagents,
tissue culture media and dyes.
Sample preparation for analytical methods such as flame AAS

BOECOpure PLUS UV/UF Flow chart

BOECOpure PLUS standard xs basic
BOECOpure PLUS UV xs basic

The simple solution for H2O pure type ASTM I + ASTM II

The BOECOpure PLUS standard xs is an extremly compact system and the best choice when small volumes of both pure water and ultrapure water are required. It offers great flexibility and can be directly connected to the drin- king water supply.

The standard OptiFill dispenser is a flexible extraction solution for a kind of laboratory vessels. The ergonomic shape of it enables onehanded use of it for both system operation and the monitoring of all quality parameters.

The dispensing of pure water and ultrapure water from a single system is made possibe by the need-filling combination of ultra-modern purification technologies.

Features:
» Reliable ASTM I + II water quality supply
» Tap water set for direct drinking water connection
» Optifill dispenser as standard:
» enables one handed dispenser operation
» is detachable and ergonomically shaped
» can be turned by 170 degrees/80 cm in diameter and is height adjustable
» Simple and economical filter replacement
» Clear view of controls with graphics display
» Leak detector is included as a standard
» Supply including all mandatory filters and consumables for start-up and operation)

The BOECOpure PLUS UV is supplemented with UV-oxidation, 185/254 nm.

ASTM Type I Ultrapure water applicable for
Molecular biology, microbiology, PCR, inorganic and organic trace analysis HPLC, ICP, TOC-analysis

ASTM Type II pure water applicable for
Rinsing laboratory glassware, preparing and diluting buffers, reagents, tissue culture media and dyes.
Sample preparation for analytical methods such as flame AAS

BOECOpure PLUS UV/UF Flow chart
